Drive Motor Power Inverter Module Connector Removal
WARNING: This page is about a different variant/trim than selected.

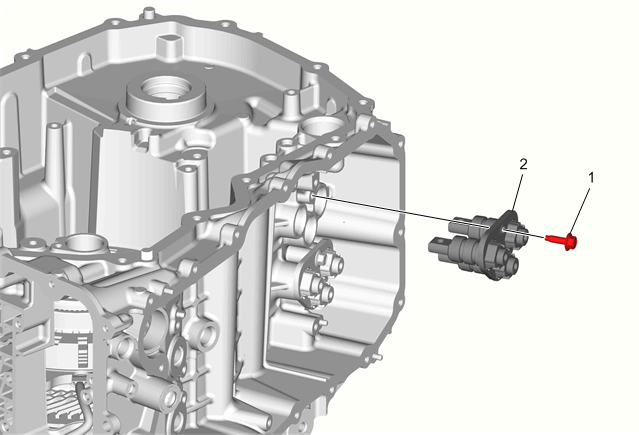

Courtesy of GENERAL MOTORS COMPANY Drive Motor Power Inverter Module Connector Removal
| Callout |
Component Name |
| 1 |
Drive Motor Power Inverter Module Connector Bolt
NOTE:
DISCARD the bolt.
|
| 2 |
Drive Motor Power Inverter Module Connector
NOTE:
DISCARD the connector.
|
