Drive Motor - 2nd Position Bolt Removal

WARNING: This page is about a different variant/trim than selected.

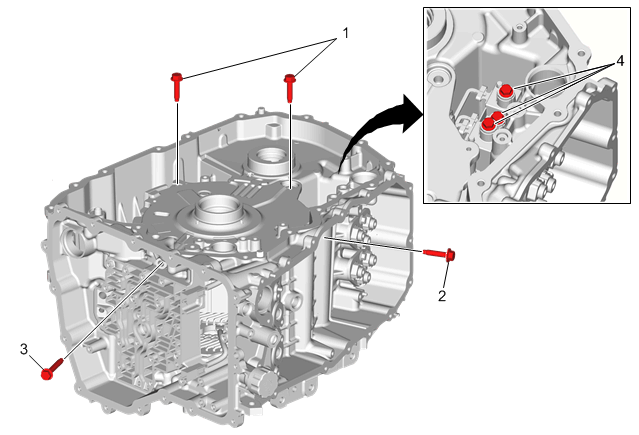

Fig 1: Drive Motor - 2nd Position Bolts
GM4038531Courtesy of GENERAL MOTORS COMPANY
Drive Motor - 2nd Position Bolt Removal

Callout Component Name
1 Automatic Transmission Case Extension Bolt [2x]
2 Automatic Transmission Case Extension Bolt [1x]
NOTE: DISCARD the bolt.
3 Automatic Transmission Case Extension Bolt [1x]
NOTE: DISCARD the bolt.
4 Drive Motor Power Inverter Module 3-Phase Cable Bolt [3x]
