Drive Motor Power Inverter Module Removal

WARNING: This page is about a different variant/trim than selected.

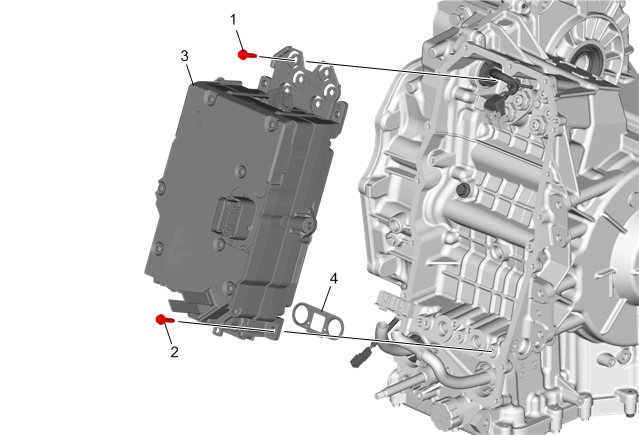

Fig 1: Drive Motor Power Inverter Module And Components

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Disconnect the 3 drive motor power inverter module connectors. Using shop air, blow air through the drive motor power inverter module cooling passage on the transmission to remove residual coolant.
1	Drive Motor Power Inverter Module 3-Phase Buss Bar Bolt [6x]
2	Drive Motor Power Inverter Module Bolt [7x]
3	Drive Motor Power Inverter Module
4	Drive Motor Power Inverter Module Fluid Seal NOTE: DISCARD the seal.
