Drive Motor - 2nd Position Installation

WARNING: This page is about a different variant/trim than selected.

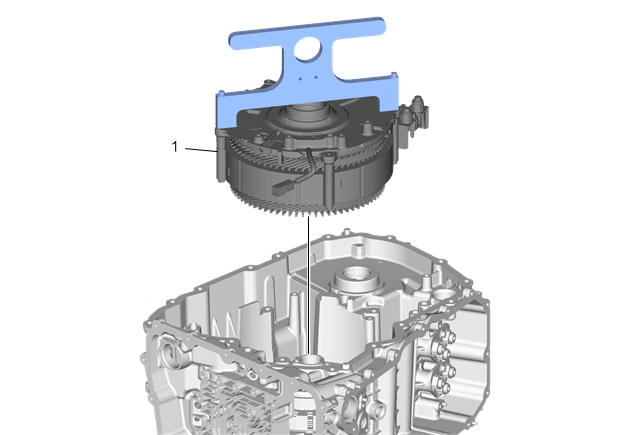

Fig 1: Drive Motor - 2nd Position

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Drive Motor - 2nd Position WARNING: The generator motor weighs approximately 23 kg (50 lbs). Personal injury may result if you lift the generator motor improperly. CAUTION: DO NOT contact or rest the drive motor stator on the copper end coils. Damage to the copper end coils may cause a high voltage short during vehicle operation, resulting in component damage. Procedure Install the DT-51623 motor lift bar. Carefully tip the drive motor onto its side, resting on the cast aluminum support. Never rest the drive motor on the stator copper end coils. Attach a lift assist hook through the DT-51623 motor lift bar handle hole and carefully raise the drive motor while holding it to rotate into position for assembly. Carefully lower the drive motor into the transmission case ensuring the copper end coils do not contact any metallic parts. Guide the drive motor resolver wire through the transmission case while lowering the drive motor using a lift assist. If the drive motor will not fully seat, raise the drive motor up with the lift assist so that the planetary gear set can be rotated slightly to engage the sun gear on the drive motor. Repeat step 5 until the drive motor can be fully seated. DO NOT rock, shake or hammer the drive motor to seat it. Special Tools DT-51623 Motor Lift Bar For equivalent regional tools, refer to Special Tools .

Callout

Component Name

Drive Motor - 2nd Position

WARNING: The generator motor weighs approximately 23 kg (50 lbs). Personal injury may result if you lift the generator motor improperly.

CAUTION: DO NOT contact or rest the drive motor stator on the copper end coils. Damage to the copper end coils may cause a high voltage short during vehicle operation, resulting in component damage.

Procedure

Install the DT-51623 motor lift bar.
Carefully tip the drive motor onto its side, resting on the cast aluminum support. Never rest the drive motor on the stator copper end coils.
Attach a lift assist hook through the DT-51623 motor lift bar handle hole and carefully raise the drive motor while holding it to rotate into position for assembly.
Carefully lower the drive motor into the transmission case ensuring the copper end coils do not contact any metallic parts.
Guide the drive motor resolver wire through the transmission case while lowering the drive motor using a lift assist.
If the drive motor will not fully seat, raise the drive motor up with the lift assist so that the planetary gear set can be rotated slightly to engage the sun gear on the drive motor.
Repeat step 5 until the drive motor can be fully seated. DO NOT rock, shake or hammer the drive motor to seat it.

Special Tools
DT-51623 Motor Lift Bar
For equivalent regional tools, refer to Special Tools .
