Drive Motor Stator Removal
WARNING: This page is about a different variant/trim than selected.
Drive Motor Stator Removal

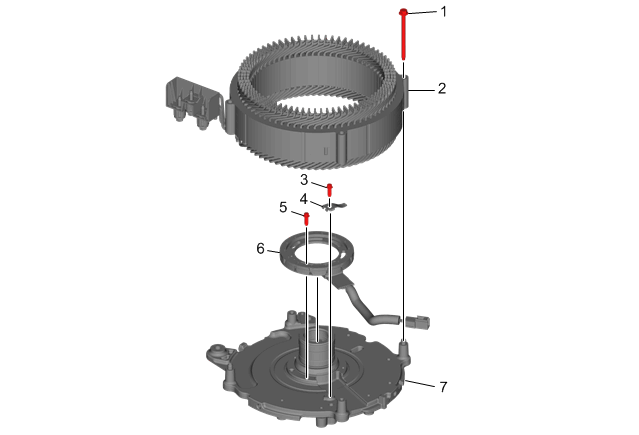

| Callout | Component Name |
|---|---|
| 1 | Drive Motor Stator Bolt [4x]
NOTE:
DISCARD the bolts.
|
| 2 | Drive Motor Stator
CAUTION:
DO NOT contact or rest the drive motor stator on the copper end coils. Damage to the copper end coils may cause a high voltage short during vehicle operation, resulting in component damage.
NOTE:
Place the drive motor stator on a lint free cloth over a piece of cardboard.
|
| 3 | Drive Motor Position Sensor Bolt [1x]
NOTE:
DISCARD the bolts.
|
| 4 | Drive Motor Position Sensor Connector Clip |
| 5 | Drive Motor Position Sensor Bolt [3x]
NOTE:
DISCARD the bolts.
|
| 6 | Drive Motor Position Sensor Stator |
| 7 | Drive Motor Support
NOTE:
The drive motor support is a mandatory replacement component. Discard the drive motor support.
|
