Drive Motor Rotor Removal

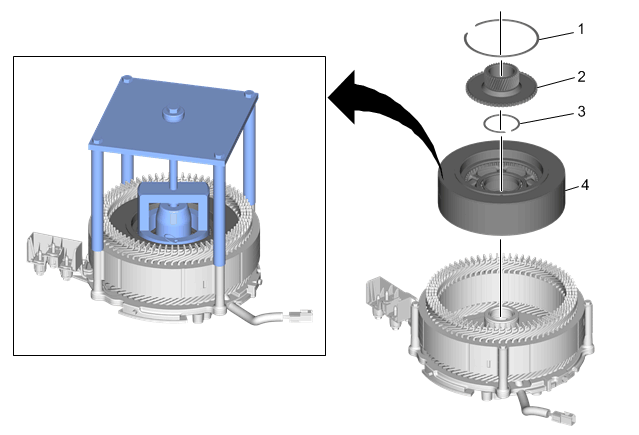

| Callout | Component Name |
|---|---|
| 1 | Output Sun Gear Retaining Ring |
| 2 | Output Sun Gear |
| 3 | Drive Motor Rotor Bearing Retaining Ring
NOTE:
DISCARD the retaining ring.
|
| 4 | Drive Motor Rotor
NOTE:
The drive motor rotor is strongly magnetic. DO NOT place within 6 inches of ferrous metallic components.
NOTE:
Place the drive motor rotor on a lint free cloth to prevent metallic debris from adhering to the outer diameter. Metallic debris can be removed from the motor outer diameter by blotting with adhesive tape. Special Tools DT-51621 Rotor Remover/Installer For equivalent regional tools, refer to Special Tools . |
