Drive Motor Stator and Rotor Removal
WARNING: This page is about a different variant/trim than selected.

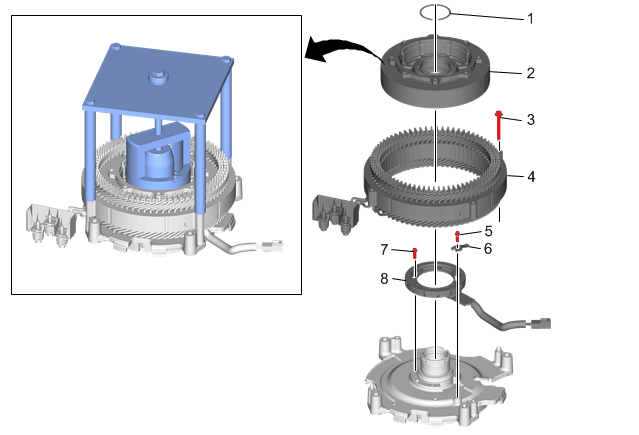

Drive Motor Stator and Rotor Removal
| Callout | Component Name |
|---|---|
| 1 | Drive Motor Rotor Bearing Retaining Ring
NOTE:
DISCARD the retaining ring.
|
| 2 | Drive Motor Rotor
NOTE:
The drive motor rotor is strongly magnetic. DO NOT place within 6 inches of ferrous metallic components.
NOTE:
Place the drive motor rotor on a lint free cloth to prevent metallic debris from adhering to the outer diameter. Metallic debris can be removed from the motor outer diameter by blotting with adhesive tape. Special Tools DT-51621 Rotor Remove/Installer For equivalent regional tools, refer to Special Tools . |
| 3 | Drive Motor Stator Bolt [4x]
NOTE:
DISCARD the bolts.
|
| 4 | Drive Motor Stator
CAUTION:
DO NOT contact or rest the drive motor stator on the copper end coils. Damage to the copper end coils may cause a high voltage short during vehicle operation, resulting in component damage.
NOTE:
Place the drive motor stator on a lint free cloth over a piece of cardboard.
|
| 5 | Drive Motor Position Sensor Bolt [1x]
NOTE:
DISCARD the bolts.
|
| 6 | Drive Motor Position Sensor Connector Clip |
| 7 | Drive Motor Position Sensor Bolt [3x]
NOTE:
DISCARD the bolts.
|
| 8 | Drive Motor Position Sensor Stator |
