Drive Motor Power Inverter Module Cable Guide Assembly Removal
WARNING: This page is about a different variant/trim than selected.
Drive Motor Power Inverter Module Cable Guide Assembly Removal

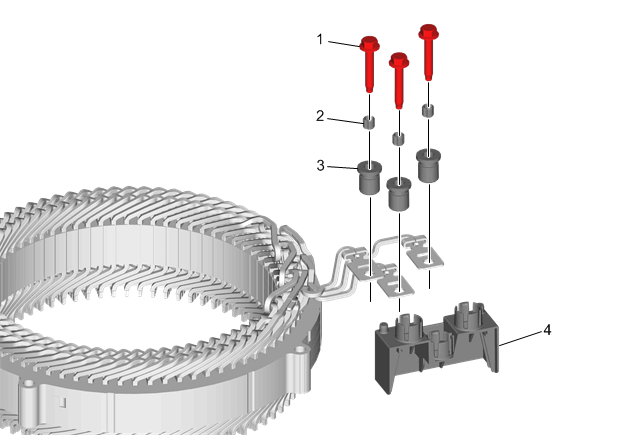

| Callout | Component Name |
|---|---|
| 1 | Drive Motor Power Inverter Module 3-Phase Cable Bolt [3x] |
| 2 | Drive Motor Power Inverter Module Cable Bolt Install Guide Retainer [3x] |
| 3 | Drive Motor Power Inverter Module Cable Bolt Install Guide Bushing [3x] |
| 4 | Drive Motor Power Inverter Module 3-Phase Cable Guide Assembly |
