Drive Motor Power Inverter Module Cable Guide Installation

WARNING: This page is about a different variant/trim than selected.

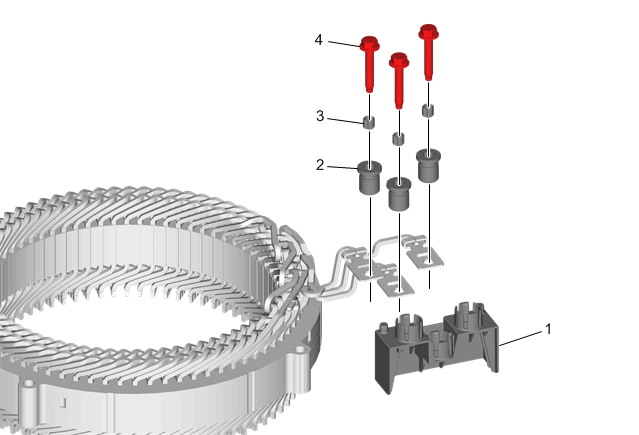

Fig 1: Drive Motor Power Inverter Module Cable Guide

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Drive Motor Power Inverter Module Cable Guide
2	Drive Motor Power Inverter Module Cable Bolt Install Guide Bushing [3x]
3	Drive Motor Power Inverter Module Cable Bolt Install Guide Retainer [3x]
4	Drive Motor Power Inverter Module 3-Phase Cable Bolt [3x]
