Drive Link Snubber Removal
WARNING: This page is about a different variant/trim than selected.

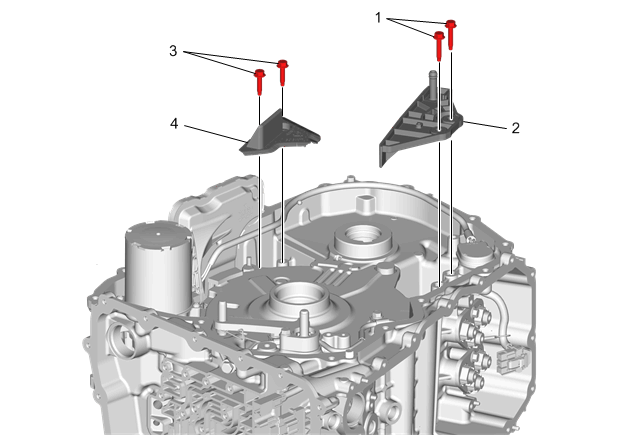

| Callout | Component Name |
|---|---|
| 1 | Drive Link Snubber Bolt [2x] |
| 2 | Drive Link Snubber |
| 3 |
NOTE:
A plastic washer is used on the bolts during initial assembly. These washers may come loose after bolt removal. Ensure that the washers do not drop into the transmission case. Discard the washers. Drive Link Snubber Bolt (Coast Side) [2x] |
| 4 | Drive Link Snubber (Coast Side) |
