Control Valve Body Cover Installation
WARNING: This page is about a different variant/trim than selected.

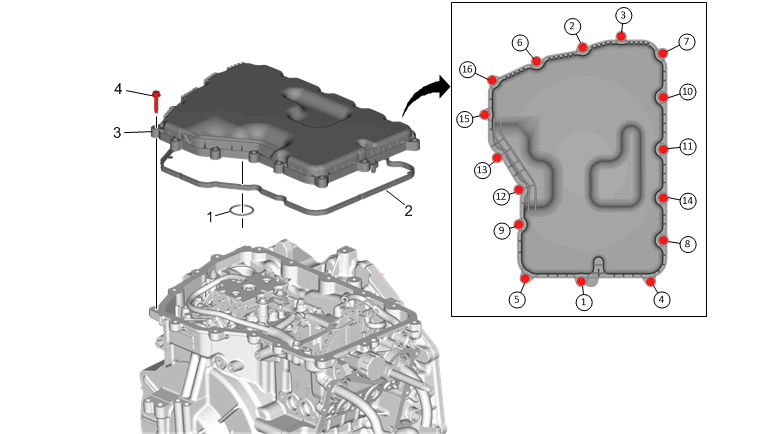

| Callout | Component Name |
|---|---|
| 1 | Automatic Transmission Fluid Level Control Valve Seal - O-ring
NOTE:
The seal is reusable, inspect the seal and replace if damaged.
|
| 2 | Automatic Transmission Fluid Level Control Valve Seal
NOTE:
The gasket is reusable, inspect the gasket and replace if damaged.
|
| 3 | Control Valve Body Cover |
| 4 | Control Valve Body Cover Bolt [16x]
CAUTION:
Refer to Fastener Caution
. Tighten 9 N.m (80 lb in) |
