Control Valve (with Body and Valve) Removal
WARNING: This page is about a different variant/trim than selected.
Control Valve (with Body and Valve) Removal

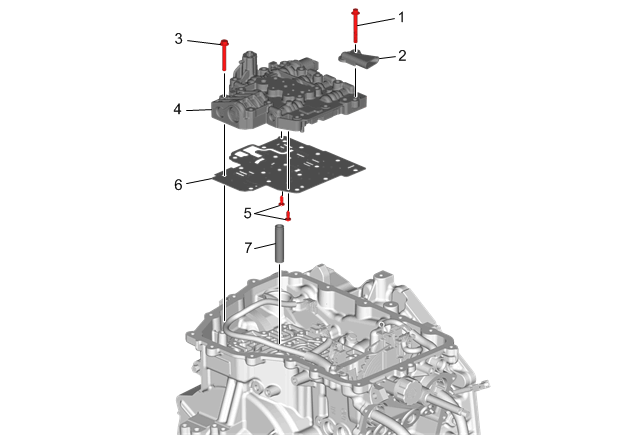

| Callout | Component Name |
|---|---|
| Preliminary Procedure Disconnect the transmission wiring harness from the control valve body. |
|
| 1 | Fluid Transfer Pipe Bolt |
| 2 | Fluid Transfer Pipe |
| 3 | Control Valve Body Bolt [13x] |
| 4 | Control Valve (with Body and Valve) |
| 5 | Control Valve Body Spacer Plate Retainer [2x] |
| 6 | Control Valve Lower Body Spacer Plate |
| 7 | Variable Low Clutch Fluid Passage Seal |
