Control Solenoid Valve Removal

WARNING: This page is about a different variant/trim than selected.

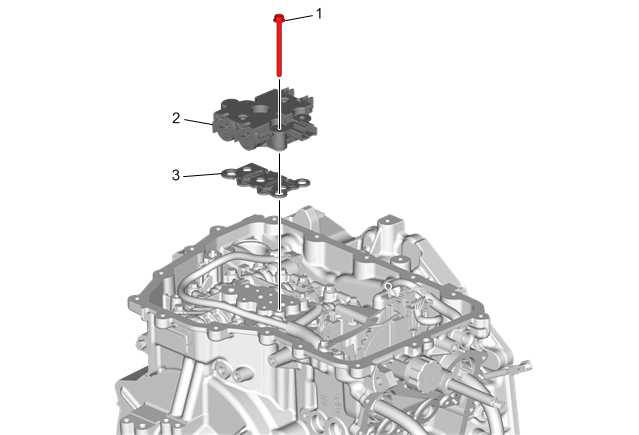

Fig 1: Control Solenoid Valve
GM4037251Courtesy of GENERAL MOTORS COMPANY
Control Solenoid Valve Removal

Callout Component Name

Preliminary Procedure

  1. Disconnect the control solenoid valve wiring harness.
  2. Remove the connectors from the wiring harness brackets and shift detent lever.
1 Control Valve Body Bolt [4x]
2 Control Solenoid Valve
3 Control Solenoid Valve Filter Plate
NOTE: The filter plate is reusable, inspect the filter plate and replace if damaged.
