Control Valve (with Body and Valve) Installation
WARNING: This page is about a different variant/trim than selected.
Control Valve (with Body and Valve) Installation

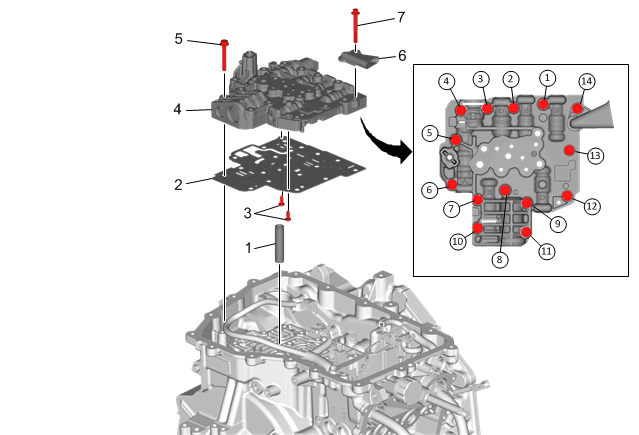

| Callout | Component Name |
|---|---|
| 1 | Variable Low Clutch Fluid Passage Seal
NOTE:
Install a NEW seal.
|
| 2 | Control Valve Lower Body Spacer Plate
NOTE:
Install a NEW spacer plate.
|
| 3 | Control Valve Body Spacer Plate Retainer [2x] |
| 4 | Control Valve (with Body and Valve) Procedure Connect the transmission wiring harness to the control valve body. |
| 5 |
CAUTION:
Refer to Fastener Caution
. Control Valve Body Bolt [13x]Tighten 9 N.m (80 lb in) |
| 6 | Fluid Transfer Pipe |
| 7 | Fluid Transfer Pipe Bolt Tighten 9 N.m (80 lb in) |
