Control Solenoid Valve Installation
WARNING: This page is about a different variant/trim than selected.
Control Solenoid Valve Installation

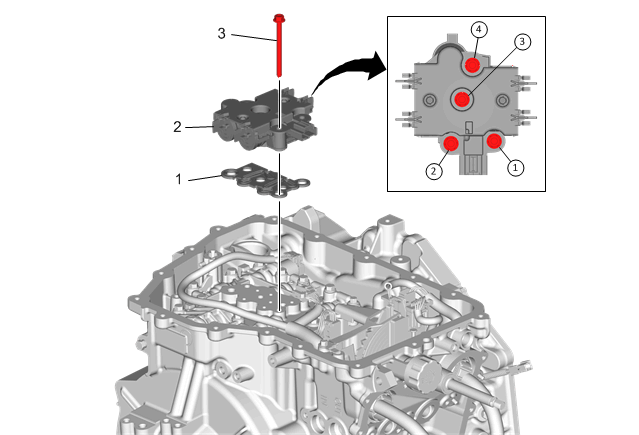

| Callout | Component Name |
|---|---|
| 1 | Control Solenoid Valve Filter Plate Procedure Align and engage the alignment tabs on the control solenoid valve filter plate to the control solenoid valve.
NOTE:
The filter plate is reusable, inspect the filter plate and replace if damaged.
|
| 2 | Control Solenoid Valve Procedure Connect the control solenoid valve wiring harness. |
| 3 | Control Valve Body Bolt [4x] Tighten 9 N.m (80 lb in) |
