Section 9 (Automatic Transmission - 5ET50 (MKE))
>>
Repair Instructions - Off Vehicle
>>
Control Valve Assembly Disassemble
Control Valve Assembly Disassemble
WARNING:
This page is about a different variant/trim than selected.

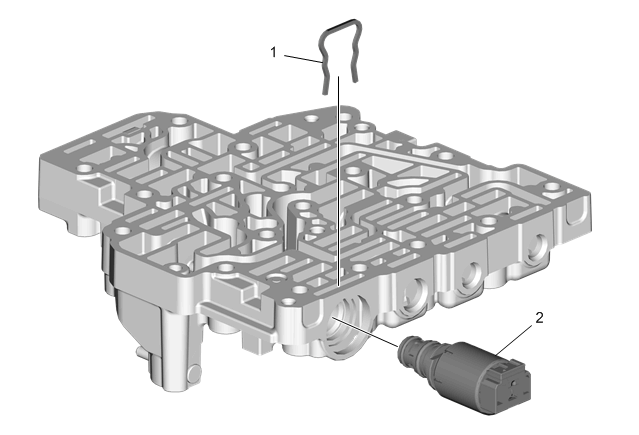

Fig 1: Control Valve Assembly
Courtesy of GENERAL MOTORS COMPANY
Callout
Component Name
1
Line Pressure Control Solenoid Valve Retainer
2
Line Pressure Control Solenoid Valve
Courtesy of GENERAL MOTORS COMPANY
