Automatic Transmission Torque Dampener and Differential Housing Removal
WARNING: This page is about a different variant/trim than selected.

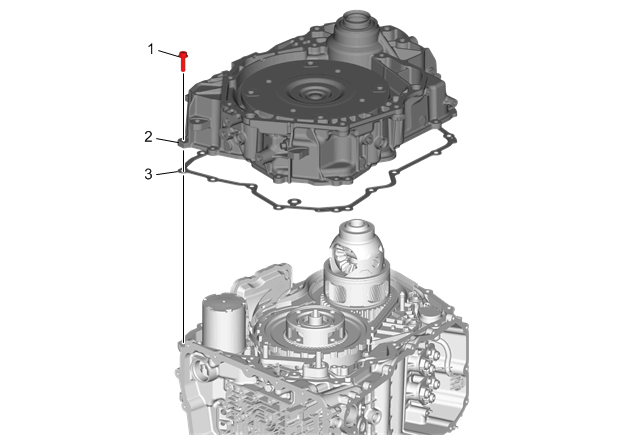

| Callout | Component Name |
|---|---|
| 1 | Torque Converter and Differential Housing Bolt [16x] |
| 2 | Automatic Transmission Torque Dampener and Differential Housing
NOTE:
The input internal gear assembly could stick to the torque dampener and differential housing.
|
| 3 | Automatic Transmission Torque Dampener and Differential Housing Gasket
NOTE:
DISCARD the gasket.
|
