Automatic Transmission Torque Dampener and Differential Housing Installation
WARNING: This page is about a different variant/trim than selected.

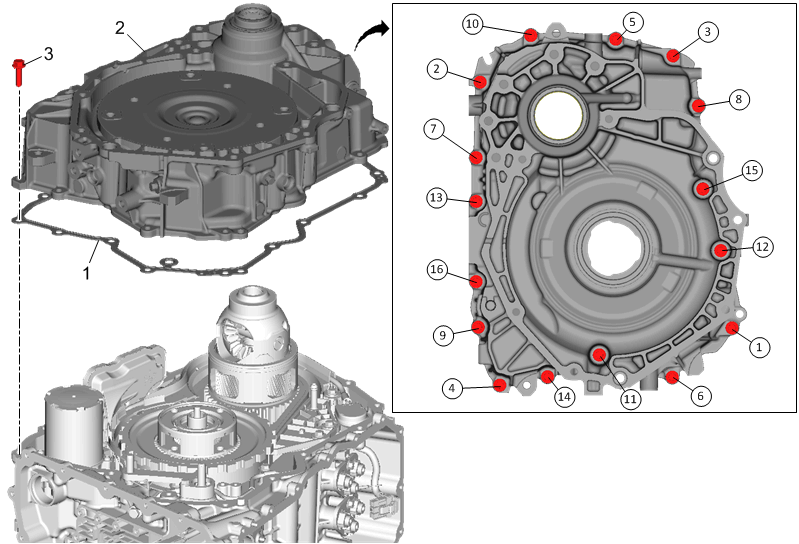

| Callout | Component Name |
|---|---|
| 1 | Automatic Transmission Torque Dampener and Differential Housing Gasket
NOTE:
Install a NEW gasket.
|
| 2 | Automatic Transmission Torque Dampener and Differential Housing
NOTE:
Use care not to crush the front differential carrier baffle, this may prevent the torque dampener and differential housing from seating properly.
|
| 3 | Torque Converter and Differential Housing Bolt [16x]
CAUTION:
Refer to Fastener Caution
. Tighten 32 N.m (24 lb ft) |
