Input Internal Gear Removal

WARNING: This page is about a different variant/trim than selected.

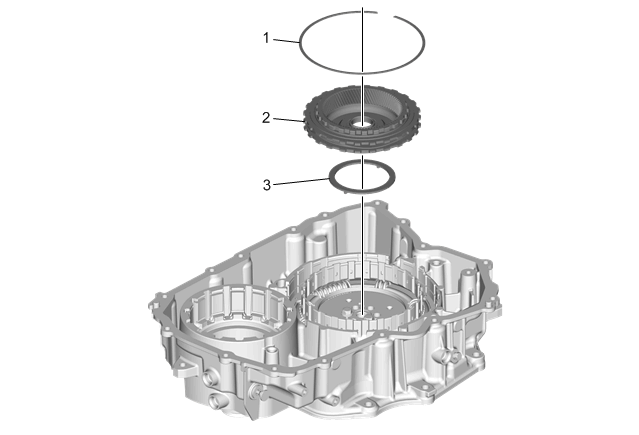

Fig 1: Input Internal Gear
GM4051453Courtesy of GENERAL MOTORS COMPANY
Input Internal Gear Removal

Callout Component Name
1 Input Internal Gear Retaining Ring
2 Input Internal Gear
3 Automatic Transmission Torque Dampener Thrust Washer
