Input Drive Flange Removal

WARNING: This page is about a different variant/trim than selected.

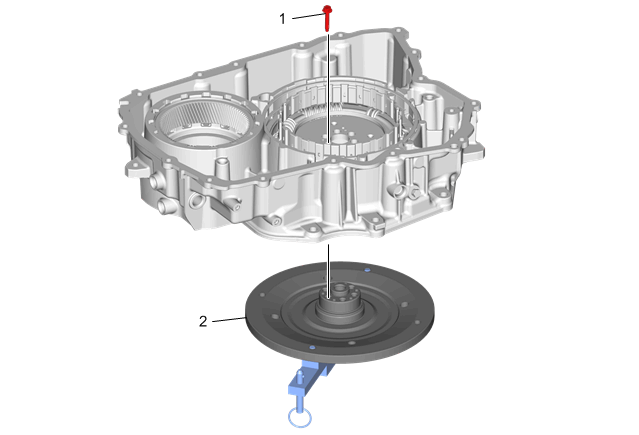

Fig 1: Input Drive Flange
GM4051462Courtesy of GENERAL MOTORS COMPANY
Input Drive Flange Removal

Callout Component Name
1 Automatic Transmission Torque Dampener Bolt [6x]
Procedure
Use DT-51654  holder in a vise to hold the torque dampener while removing the bolts.
NOTE: DISCARD the bolts.

Special Tools
DT-51654  Dampener Holder
For equivalent regional tools, refer to Special Tools .
2 Input Drive Flange
