Front Differential Ring Gear Removal
WARNING: This page is about a different variant/trim than selected.
Front Differential Ring Gear Removal

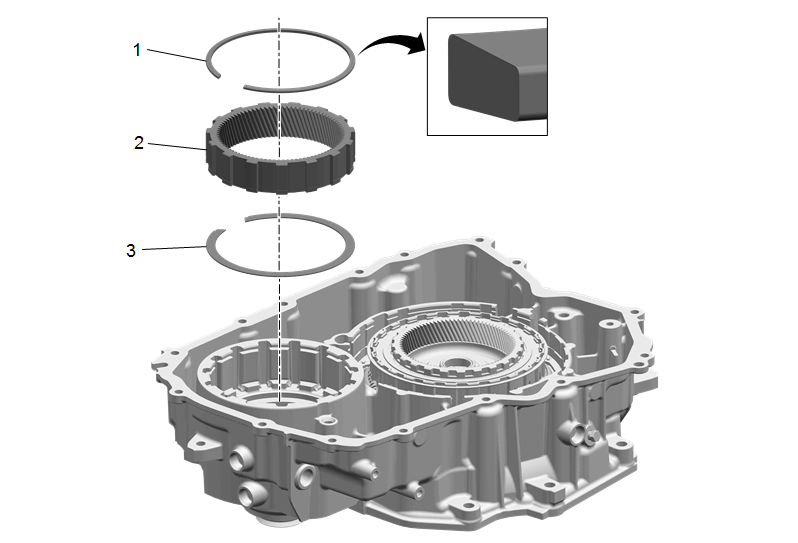

| Callout | Component Name |
|---|---|
| Preliminary Procedure Use wooden blocks or equivalent to elevate the torque dampener and differential housing on the bench to protect the front wheel drive shaft oil seal. |
|
| 1 | Front Differential Ring Gear Retainer
NOTE:
The front differential ring gear retainer is beveled. Install in the direction shown.
|
| 2 | Front Differential Ring Gear |
| 3 | Front Differential Carrier Internal Gear Wear Ring |
