Automatic Transmission Torque Dampener Bypass Clutch Piston Removal

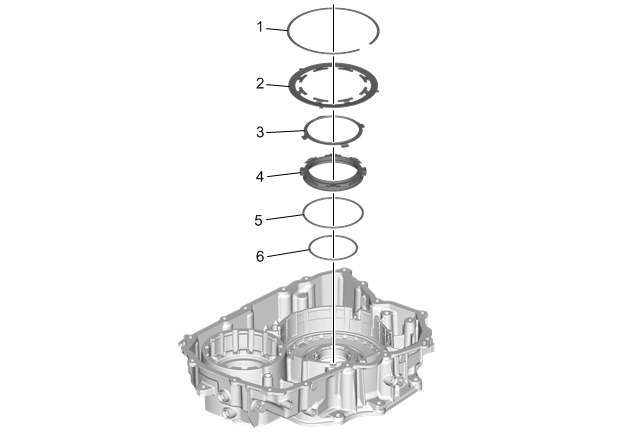

| Callout | Component Name |
|---|---|
|
CAUTION:
Refer to Seal Reuse Caution
.
|
|
| 1 | Automatic Transmission Torque Dampener Bypass Clutch Piston Return Spring Retaining Ring |
| 2 | Automatic Transmission Torque Dampener Bypass Clutch Piston Return Spring |
| 3 | Automatic Transmission Torque Dampener Bypass Clutch Apply Bearing |
| 4 | Automatic Transmission Torque Dampener Bypass Clutch Piston
NOTE:
It may be necessary to apply air to the apply passage to remove the piston.
|
| 5 | Automatic Transmission Torque Dampener Bypass Clutch Piston Outer Seal
NOTE:
DISCARD the seal.
|
| 6 | Automatic Transmission Torque Dampener Bypass Clutch Piston Inner Seal
NOTE:
DISCARD the seal.
|
