Automatic Transmission Torque Dampener and Differential Housing Cleaning and Inspection

WARNING: This page is about a different variant/trim than selected.

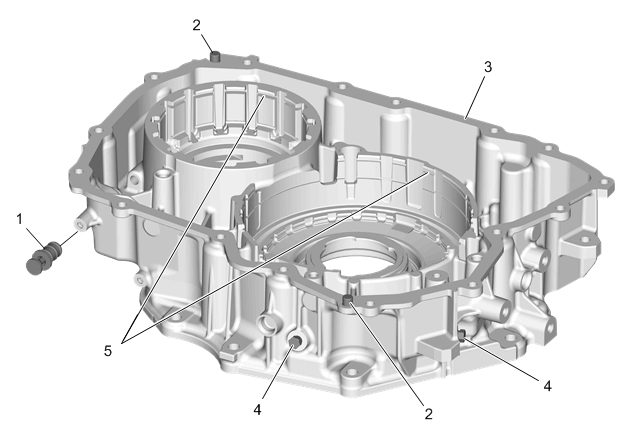

Fig 1: Automatic Transmission Torque Dampener And Differential Housing

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
CAUTION: Do not use abrasive pads or bristle devices to clean the sealing surfaces. Abrasive pads produce a fine grit that can effect transmission function. Abrasive pads can also remove enough metal to create oil leaks. CAUTION: After cleaning the transmission components, allow to air dry. Do not use cloth or paper towels in order to dry any transmission components. Lint from the towels can cause component failure. CAUTION: Do not reuse cleaning solvents. Previously used solvents may deposit sediment which may damage the component. Preliminary Procedures Thoroughly clean the torque dampener and differential housing, including case threads, with clean solvent. Clean gasket sealing surfaces. Remove all residual gasket material. Inspect all threaded holes. If necessary, repair any thread damage.
1	Transmission Fluid Filler Tube Plug
2	Transmission Fluid Filler Tube Plug
3	Transmission Case to Torque Dampener and Differential Housing Sealing Surface
4	Automatic Transmission Fluid Pressure Test Hole Plug [2x]
5	Retaining Ring Grooves
