Input Internal Gear Installation

WARNING: This page is about a different variant/trim than selected.

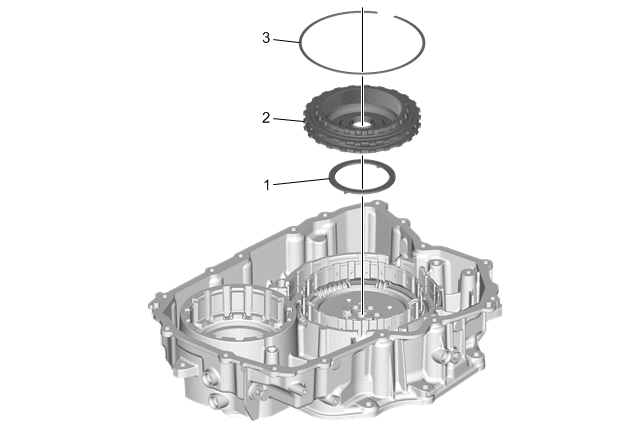

Fig 1: Input Internal Gear
GM4051482Courtesy of GENERAL MOTORS COMPANY
Input Internal Gear Installation

Callout Component Name
1 Automatic Transmission Torque Dampener Thrust Washer - Selective
Procedure
Select the correct retaining ring. Refer to Automatic Transmission Torque Dampener Thrust Washer Measurement .
2 Input Internal Gear
3 Input Internal Gear Retaining Ring
