Automatic Transmission Torque Dampener Thrust Washer Measurement (Step 2)

WARNING: This page is about a different variant/trim than selected.

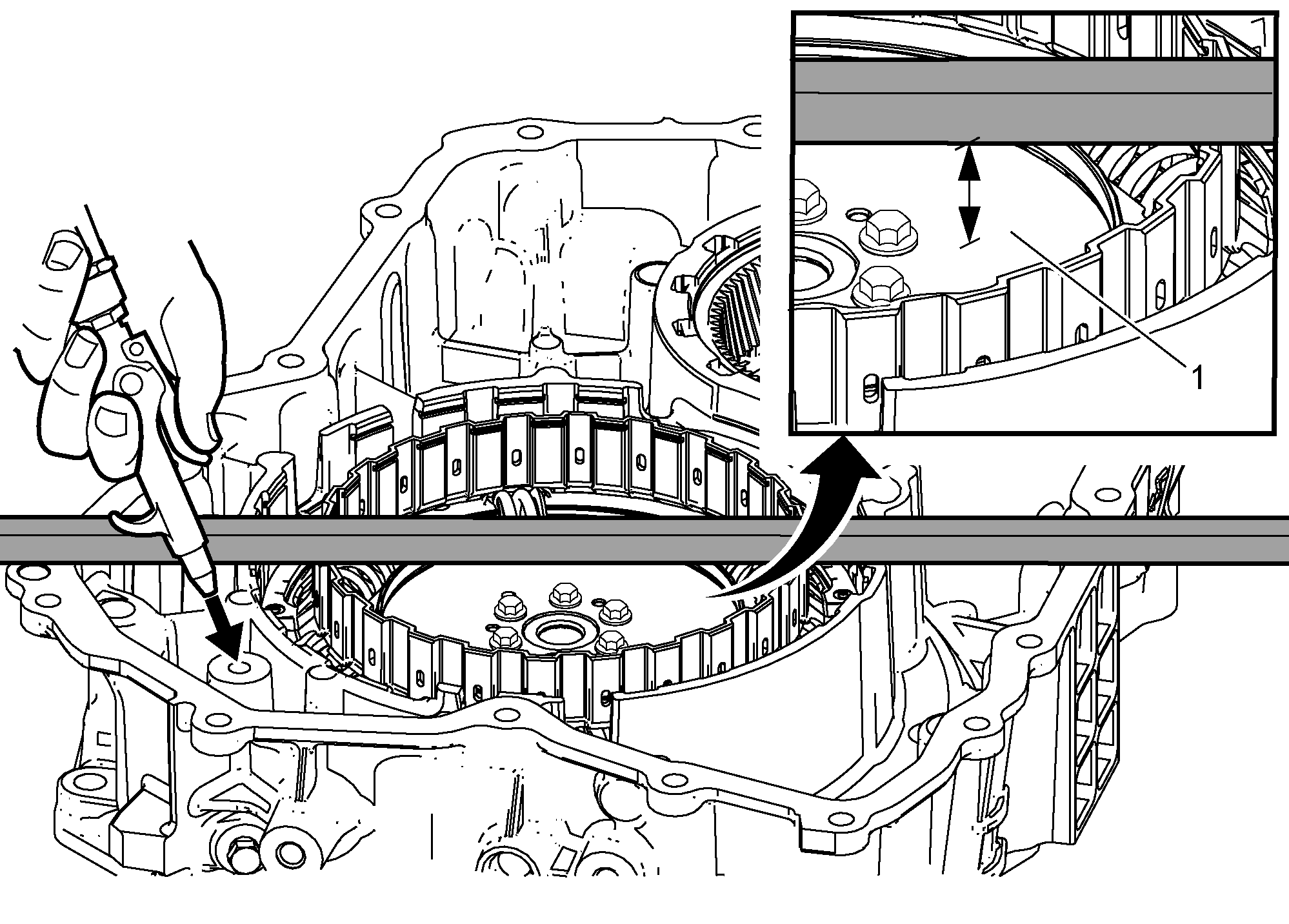

Fig 1: Automatic Transmission Torque Dampener Thrust Washer Measurement (Step 2)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Automatic Transmission Torque Dampener Procedure Apply 50 PSI of compressed air to the torque dampener bypass clutch and measure from the torque dampener and differential housing mating face to the torque dampener. Record this as dimension B. Subtract dimension A from dimension B to determine the correct automatic transmission torque dampener thrust washer. Refer to Automatic Transmission Torque Dampener Thrust Washer Specifications .

Callout

Component Name

Automatic Transmission Torque Dampener

Procedure

Apply 50 PSI of compressed air to the torque dampener bypass clutch and measure from the torque dampener and differential housing mating face to the torque dampener. Record this as dimension B.
Subtract dimension A from dimension B to determine the correct automatic transmission torque dampener thrust washer. Refer to Automatic Transmission Torque Dampener Thrust Washer Specifications .
