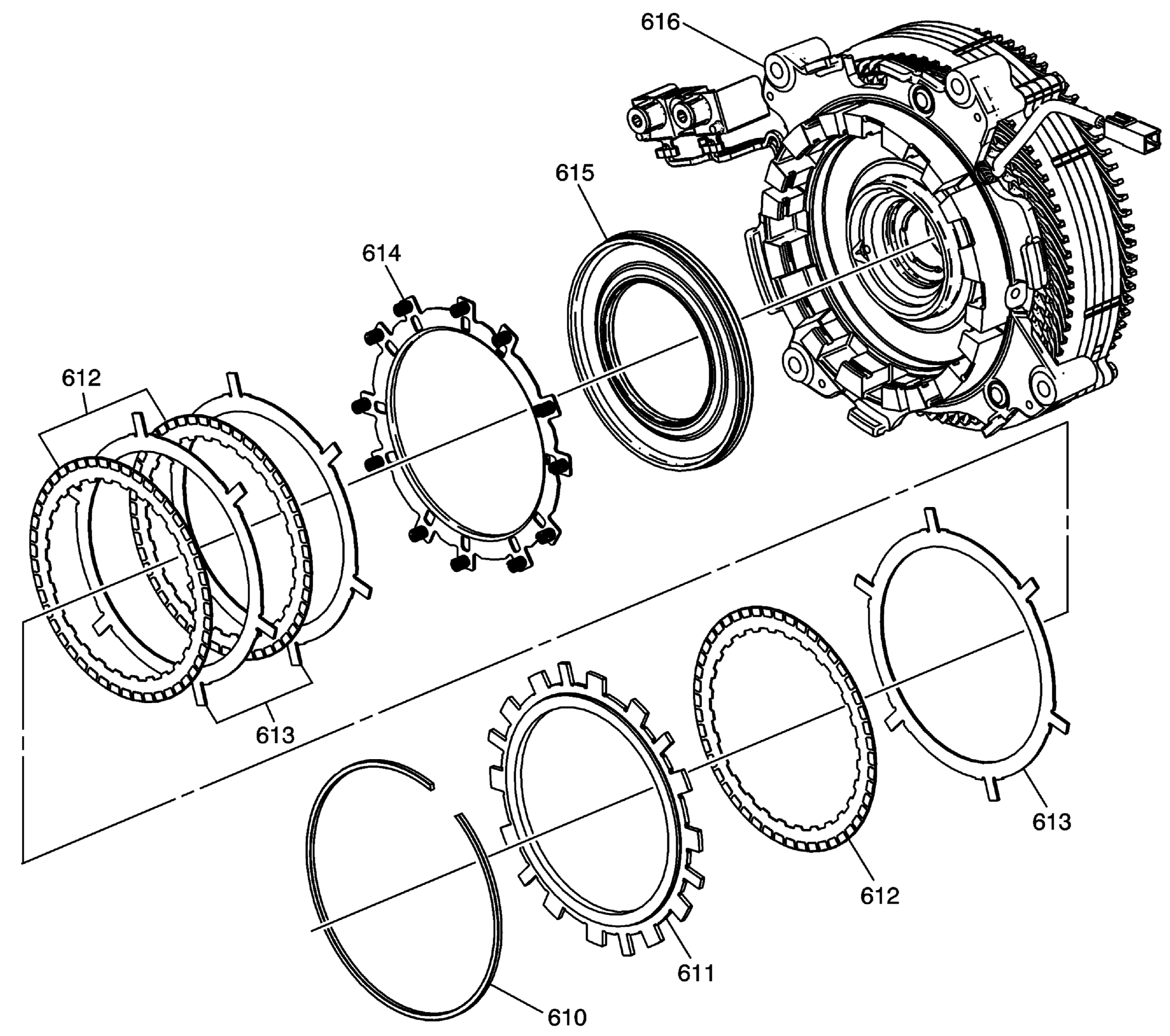

Variable Low Clutch Assembly
WARNING: This page is about a different variant/trim than selected.
| Callout | Component Name |
|---|---|
| 610 | Variable Low Clutch Backing Plate Retaining Ring - (Selective) |
| 611 | Variable Low Clutch Backing Plate |
| 612 | Variable Low Clutch Plate [3x] - Friction |
| 613 | Variable Low Clutch Plate [3x] |
| 614 | Variable Low Clutch Spring |
| 615 | Variable Low Clutch Piston |
| 616 | Drive Motor - (1st Position) |
