Transmission Case Assembly (2 of 2)
WARNING: This page is about a different variant/trim than selected.

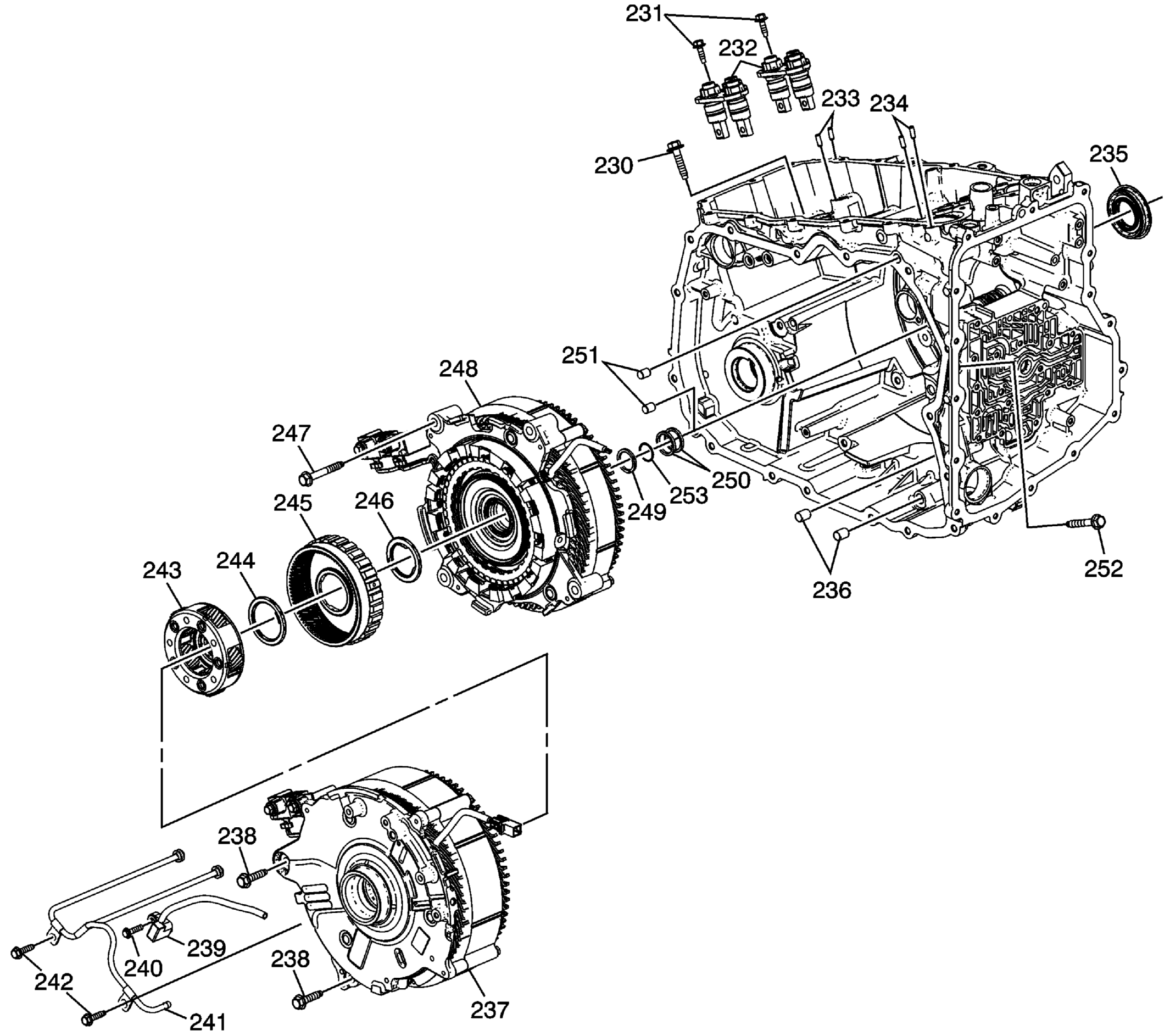

| Callout | Component Name |
|---|---|
| 230 | Automatic Transmission Case Extension Bolt |
| 231 | Drive Motor Power Inverter Module Connector Bolt [2x] |
| 232 | Drive Motor Power Inverter Module Connector [2x] |
| 233 | Drive Motor Power Inverter Module Pin [2x] |
| 234 | Drive Motor Power Inverter Module Cover Pin [2x] |
| 235 | Front Wheel Drive Shaft Oil Seal |
| 236 | Automatic Transmission Fluid Pump Locating Pin [2x] |
| 237 | Drive Motor - (2nd Position) |
| 238 | Automatic Transmission Case Extension Bolt [2x] |
| 239 | Automatic Transmission Output Speed Sensor |
| 240 | Automatic Transmission Output Speed Sensor Bolt [2x] |
| 241 | Drive Motor Stator Cooling Tube |
| 242 | Drive Motor Stator Cooling Tube Bolt [2x] |
| 243 | Output Carrier |
| 244 | Output Carrier Thrust Bearing |
| 245 | Output Carrier Internal Gear |
| 246 | Output Carrier Internal Gear Hub Thrust Bearing |
| 247 | Automatic Transmission Case Extension Bolt |
| 248 | Drive Motor - (1st Position) |
| 249 | Variable High Clutch Fluid Transfer Support Seal |
| 250 | Variable High Clutch Fluid Transfer Support Seal [2x] |
| 251 | Transmission Case Locating Pin [2x] |
| 252 | Automatic Transmission Case Extension Bolt |
| 253 | Variable High Clutch Fluid Seal Ring |
