Output Carrier Internal Gear Assembly

WARNING: This page is about a different variant/trim than selected.

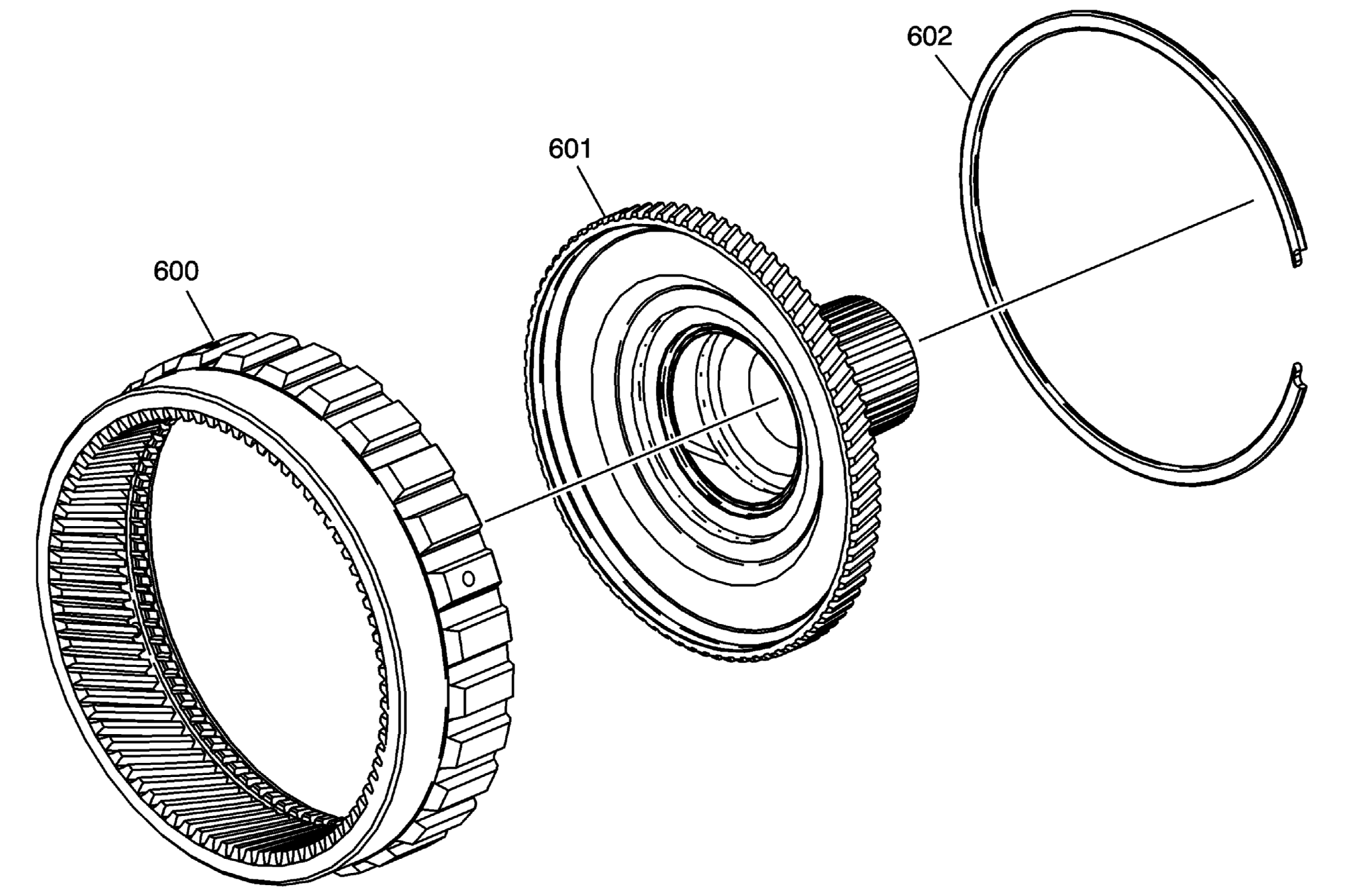

Fig 1: Output Carrier Internal Gear Assembly
GM4000159Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
600 Output Carrier Internal Gear
601 Output Carrier Internal Gear Hub
602 Output Carrier Internal Gear Retaining Ring
