Drive Motor Assembly (1st Position)
WARNING: This page is about a different variant/trim than selected.

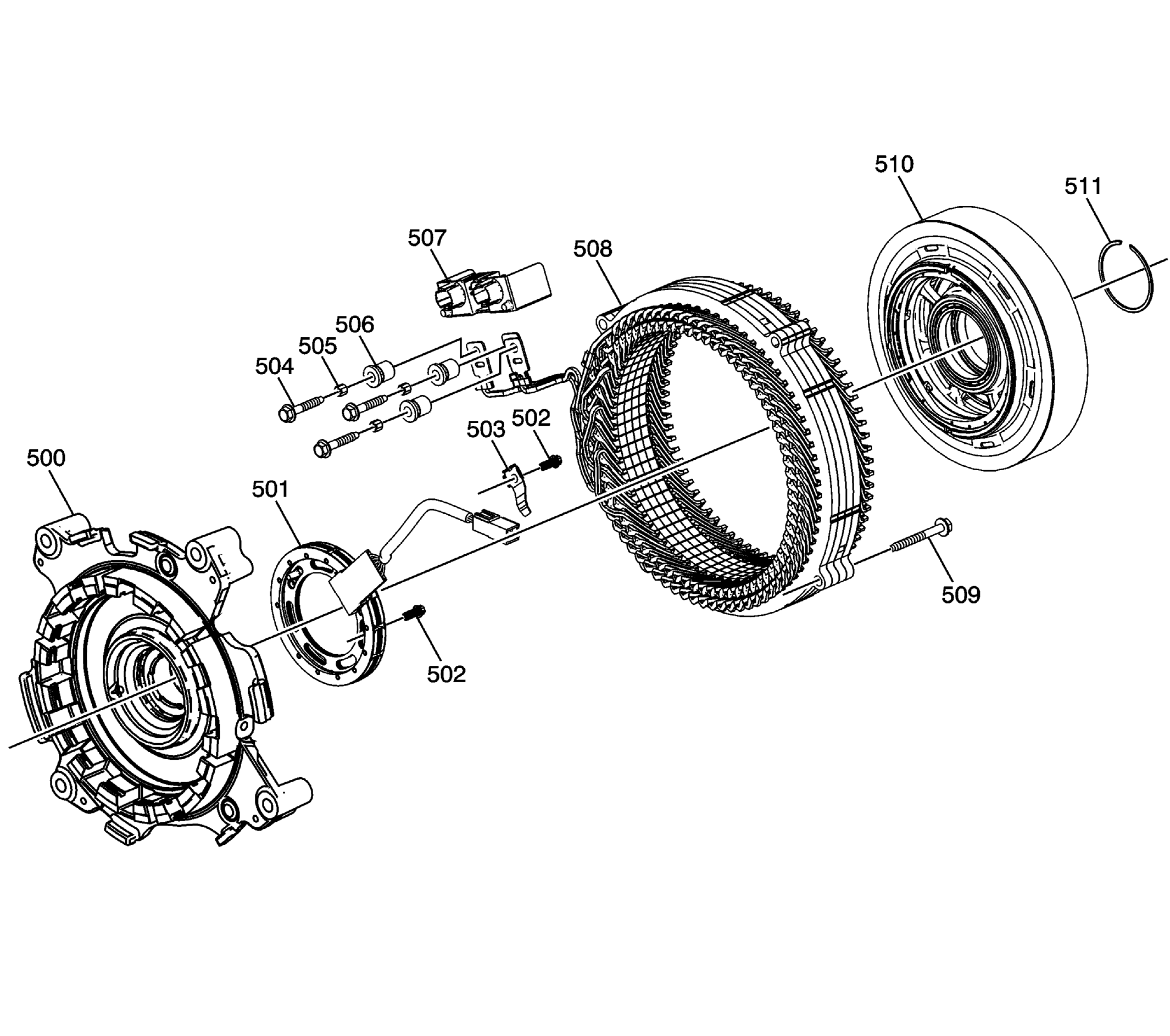

| Callout | Component Name |
|---|---|
| 500 | Drive Motor Support |
| 501 | Drive Motor Position Sensor Stator |
| 502 | Drive Motor Position Sensor Bolt [4x] |
| 503 | Drive Motor Position Sensor Connector Clip |
| 504 | Drive Motor Power Inverter Module 3-Phase Cable Bolt [3x] |
| 505 | Drive Motor Power Inverter Module Cable Bolt Install Guide Retainer [3x] |
| 506 | Drive Motor Power Inverter Module Cable Bolt Install Guide Bushing [3x] |
| 507 | Drive Motor Power Inverter Module Cable Guide |
| 508 | Drive Motor Stator - (1st Position) |
| 509 | Drive Motor Stator Bolt [4x] |
| 510 | Drive Motor Rotor - (1st Position) |
| 511 | Drive Motor Rotor Bearing Retaining Ring |
