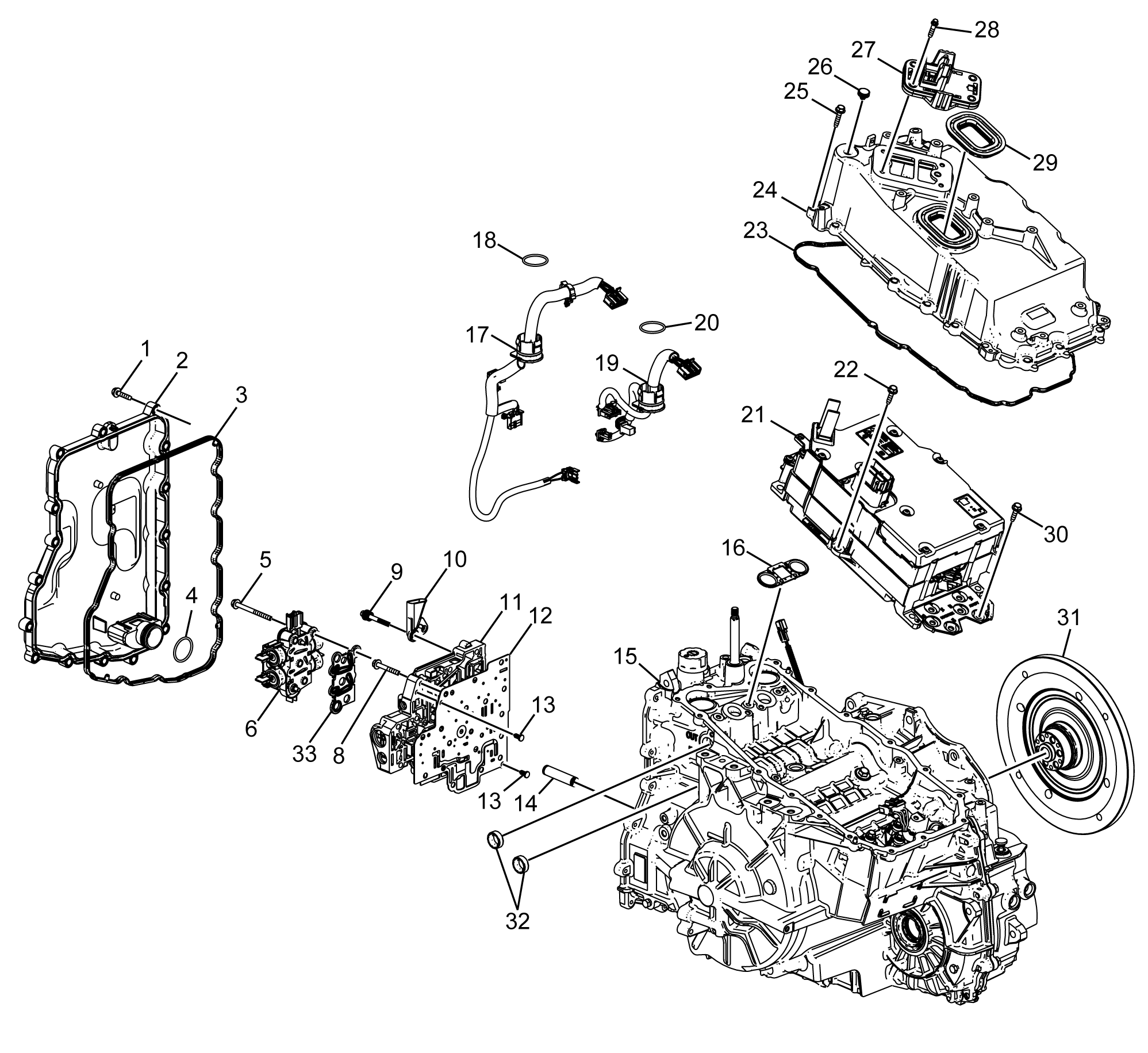

Case and Associated Parts (1 of 2)
WARNING: This page is about a different variant/trim than selected.
| Callout | Component Name |
|---|---|
| 1 | Valve Body Cover Bolt [16x] |
| 2 | Control Valve Body Cover |
| 3 | Automatic Transmission Fluid Level Control Valve Seal - Gasket |
| 4 | Automatic Transmission Fluid Level Control Valve Seal - O-Ring |
| 5 | Valve Body Bolt [4x] |
| 6 | Control Solenoid Valve |
| 8 | Valve Body Bolt [13x] |
| 9 | Fluid Transfer Pipe Bolt |
| 10 | Fluid Transfer Pipe |
| 11 | Control Valve |
| 12 | Control Valve Lower Body Spacer Plate |
| 13 | Control Valve Body Spacer Plate Retainer [2x] |
| 14 | Variable Low Clutch Fluid Passage Seal |
| 15 | Automatic Transmission Case |
| 16 | Drive Motor Power Inverter Module Fluid Seal |
| 17 | Automatic Transmission Wiring Harness - Control Solenoid Valve |
| 18 | Automatic Transmission Wiring Connector Seal - O Ring |
| 19 | Automatic Transmission Wiring Harness - Shift Shaft Position Switch |
| 20 | Automatic Transmission Wiring Connector Seal - O Ring |
| 21 | Drive Motor Generator Power Inverter Module |
| 22 | Drive Motor Power Inverter Module Bolt [7x] |
| 23 | Drive Motor Power Inverter Module Cover Gasket |
| 24 | Drive Motor Power Inverter Module Cover |
| 25 | Drive Motor Power Inverter Module Cover Bolt [17x] |
| 26 | Drive Motor Power Inverter Module Cover Vent |
| 27 | Drive Motor Battery Positive and Negative Cable Connector |
| 28 | Drive Motor Battery Positive and Negative Cable Connector Bolt [4x] |
| 29 | Drive Motor Power Inverter Module Electrical Connector Seal |
| 30 | Drive Motor Power Inverter Module 3-Phase Buss Bar Bolt [6x] |
| 31 | Input Drive Flange |
| 32 | Transmission Fluid Cooler Pipe Fitting Seal [2x] |
| 33 | Control Solenoid Valve Filter Plate |
