Component Locations
WARNING: This page is about a different variant/trim than selected.

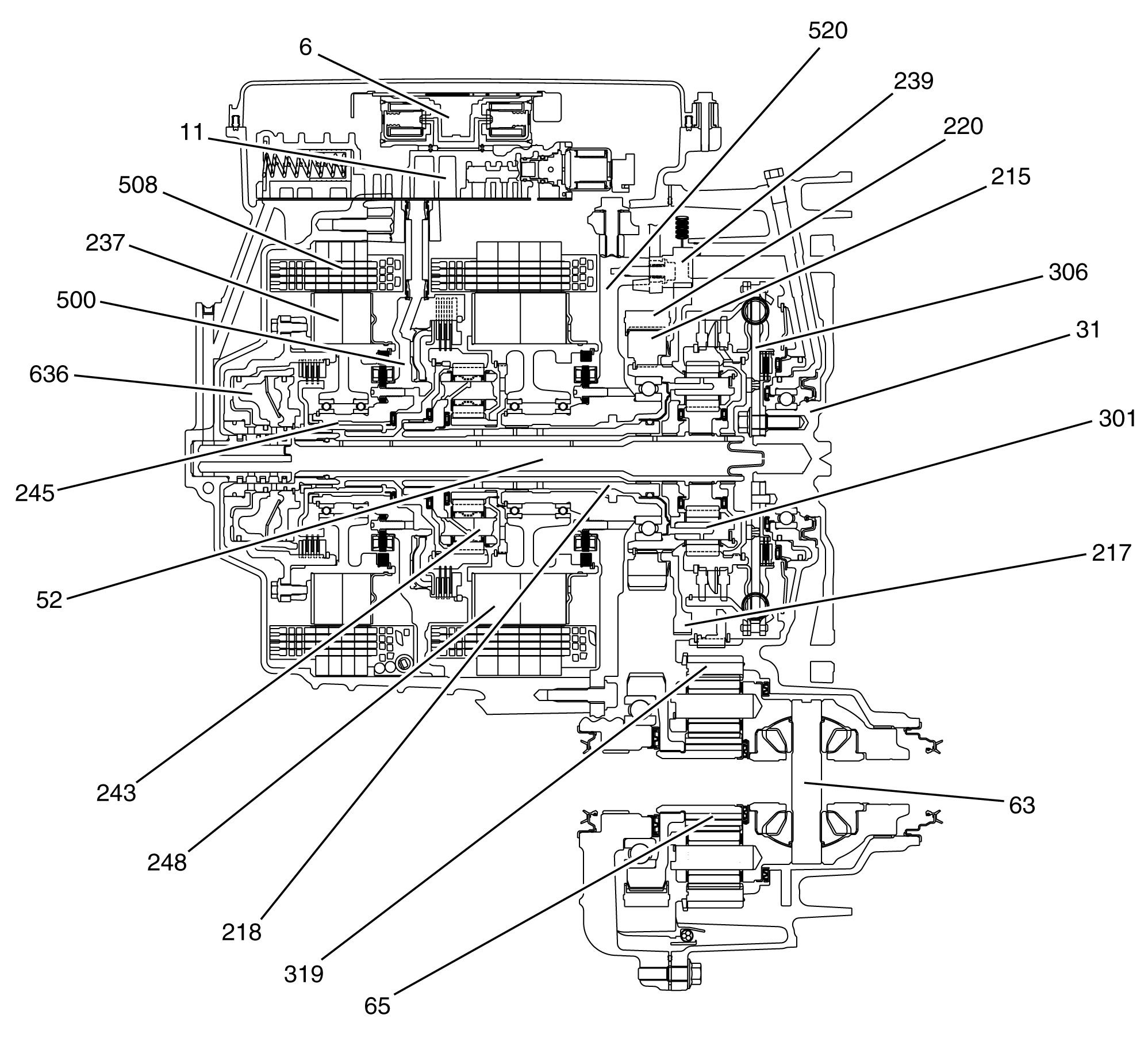

| Callout | Component Name |
|---|---|
| 6 | Control Solenoid Valve |
| 11 | Control Valve |
| 31 | Input Drive Flange |
| 52 | Input Sun Gear Shaft |
| 63 | Front Differential Carrier Assembly |
| 65 | Front Differential Carrier Sun Gear |
| 215 | Drive Sprocket |
| 217 | Park Gear |
| 218 | Input Carrier |
| 220 | Drive Link |
| 237 | Drive Motor |
| 239 | Automatic Transmission Output Speed Sensor |
| 243 | Output Carrier Assembly |
| 245 | Output Carrier Internal Gear |
| 248 | Drive Motor |
| 301 | Input Internal Gear |
| 306 | Automatic Transmission Torque Dampener |
| 319 | Front Differential Ring Gear |
| 500 | Drive Motor Support |
| 508 | Drive Motor Stator |
| 520 | Drive Motor Support |
| 636 | Variable High Clutch Housing |
