Section 8 (Battery, Charging System And Starting System - Hybrid)
>>
Schematic Wiring Diagrams
>>
Starting and Charging Wiring Schematics
>>
12V Battery Management
12V Battery Management
WARNING:
This page is about a different variant/trim than selected.

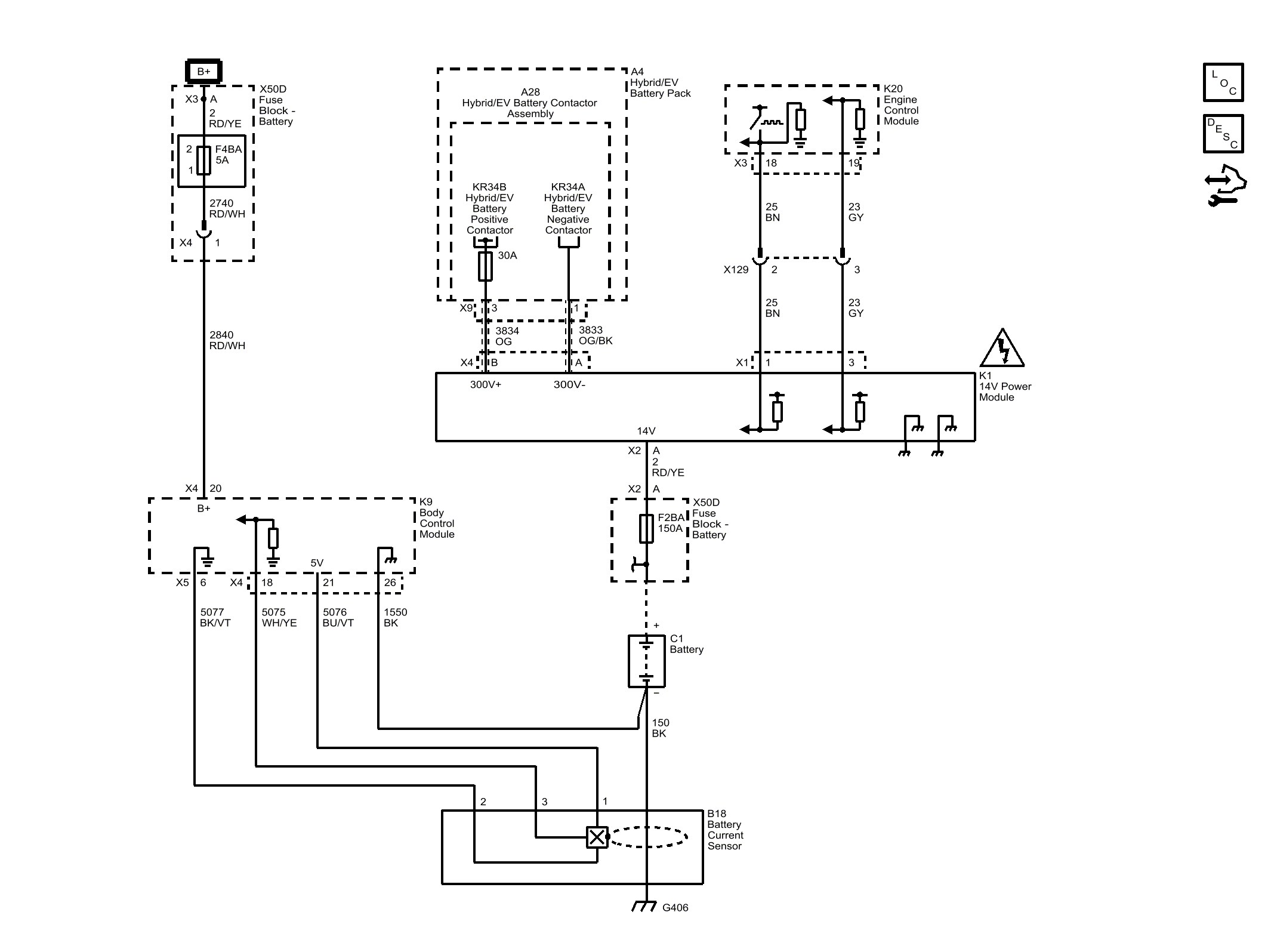

Fig 1: 12V Battery Management
Courtesy of GENERAL MOTORS COMPANY
