Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Rear Compartment Side Trim Panel (2)» Remove - Rear Compartment Side Trim Replacement - Left Side (With HP4)
    Fig 1: Rear Compartment Side Trim - Left Side (With HP4)
    GM4331788Courtesy of GENERAL MOTORS COMPANY
  2. Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection (HP4)
  3. Battery Distribution Fuse Block Cover (1)» Remove
    Fig 2: Battery Distribution Fuse Block Cover
    GM4262102Courtesy of GENERAL MOTORS COMPANY
  4. Battery Positive Post Clamp Nut (1)» Loosen
    Fig 3: Battery Distribution Fuse Block
    GM4262173Courtesy of GENERAL MOTORS COMPANY
  5. Battery Distribution Fuse Block (2)» Reposition away
  6. Battery Hold Down Retainer Nut (1)» Remove

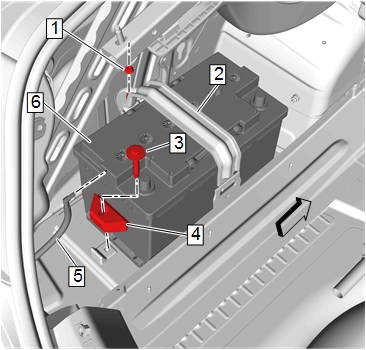

    Fig 4: Battery Hold Down Retainer Nut
    GM4262175Courtesy of GENERAL MOTORS COMPANY
  7. Battery Hold Down Retainer (2)» Remove
  8. Battery Hold Down Bolt (3)» Remove
  9. Battery Hold Down Retainer (4)» Remove
  10. Battery Vent Hose (5)» Disconnect
  11. Battery (6)» Remove
