Installation Procedure

WARNING: This page is about a different variant/trim than selected.
  1. If you are replacing the battery with a serviced NEW battery, detach the vent plug (1), that comes with the positive post cover.

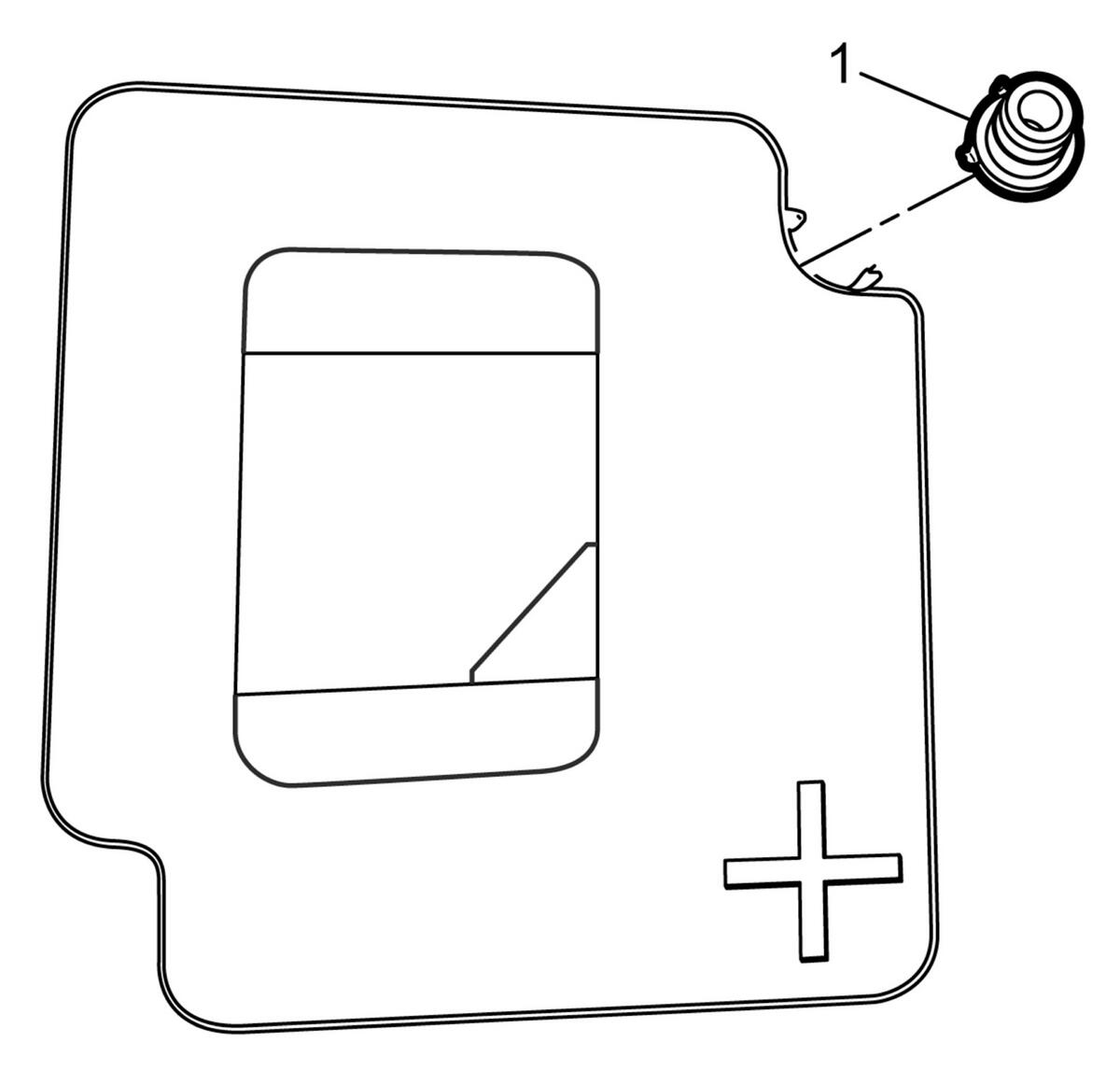

    Fig 1: Vent Plug
    GM4888560Courtesy of GENERAL MOTORS COMPANY
  2. Install the vent plug (1), opposite side of the battery vent hose (2).

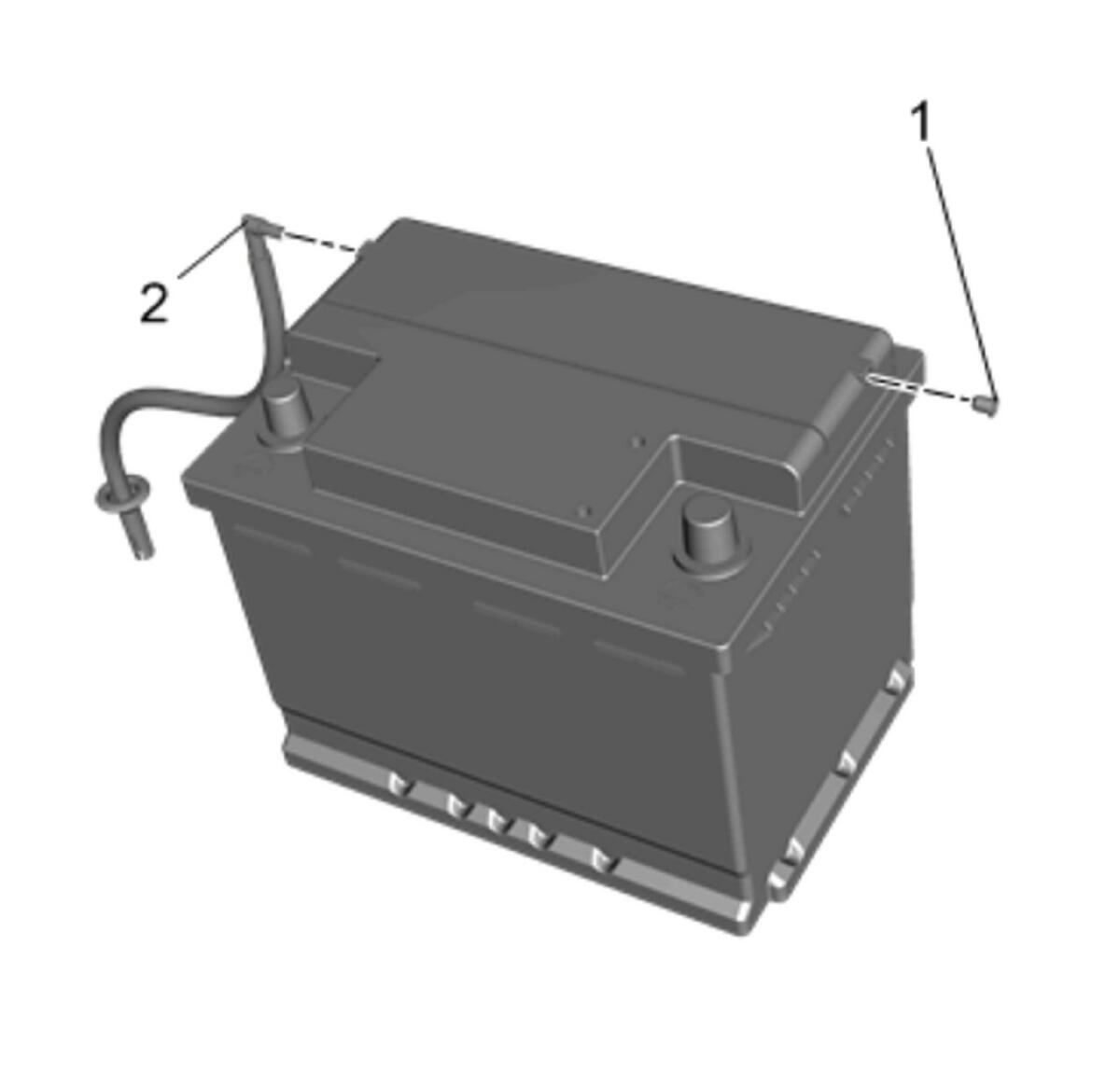

    Fig 2: Vent Plug And Battery Vent Hose
    GM4888677Courtesy of GENERAL MOTORS COMPANY
  3. Battery (6)» Install
    Fig 3: Battery Hold Down Retainer Nut
    GM4262175Courtesy of GENERAL MOTORS COMPANY
  4. Battery Hold Down Retainer (2)» Install
  5. Battery Hold Down Retainer Nut (1)» Install and tighten 9 N.m (80 lb in)
    CAUTION: Refer to Fastener Caution
  6. Battery Hold Down Retainer (4)» Install
  7. Battery Hold Down Bolt (3)» Install and tighten 22 N.m (16 lb ft)
  8. Battery Vent Hose (5)» Connect
  9. Battery Distribution Fuse Block (2)» Install
    Fig 4: Battery Distribution Fuse Block
    GM4262173Courtesy of GENERAL MOTORS COMPANY
  10. Battery Positive Post Clamp Nut (1)» Tighten 4.5 N.m (40 lb in)
  11. Battery Distribution Fuse Block Cover (1)» Install
    Fig 5: Battery Distribution Fuse Block Cover
    GM4262102Courtesy of GENERAL MOTORS COMPANY
  12. Connect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection (HP4)
  13. Rear Compartment Side Trim Panel (2)» Install - Rear Compartment Side Trim Replacement - Left Side (With HP4)
    Fig 6: Rear Compartment Side Trim - Left Side (With HP4)
    GM4331788Courtesy of GENERAL MOTORS COMPANY
