Battery Positive Cable Replacement (Rear Battery to APM Module)

WARNING: This page is about a different variant/trim than selected.

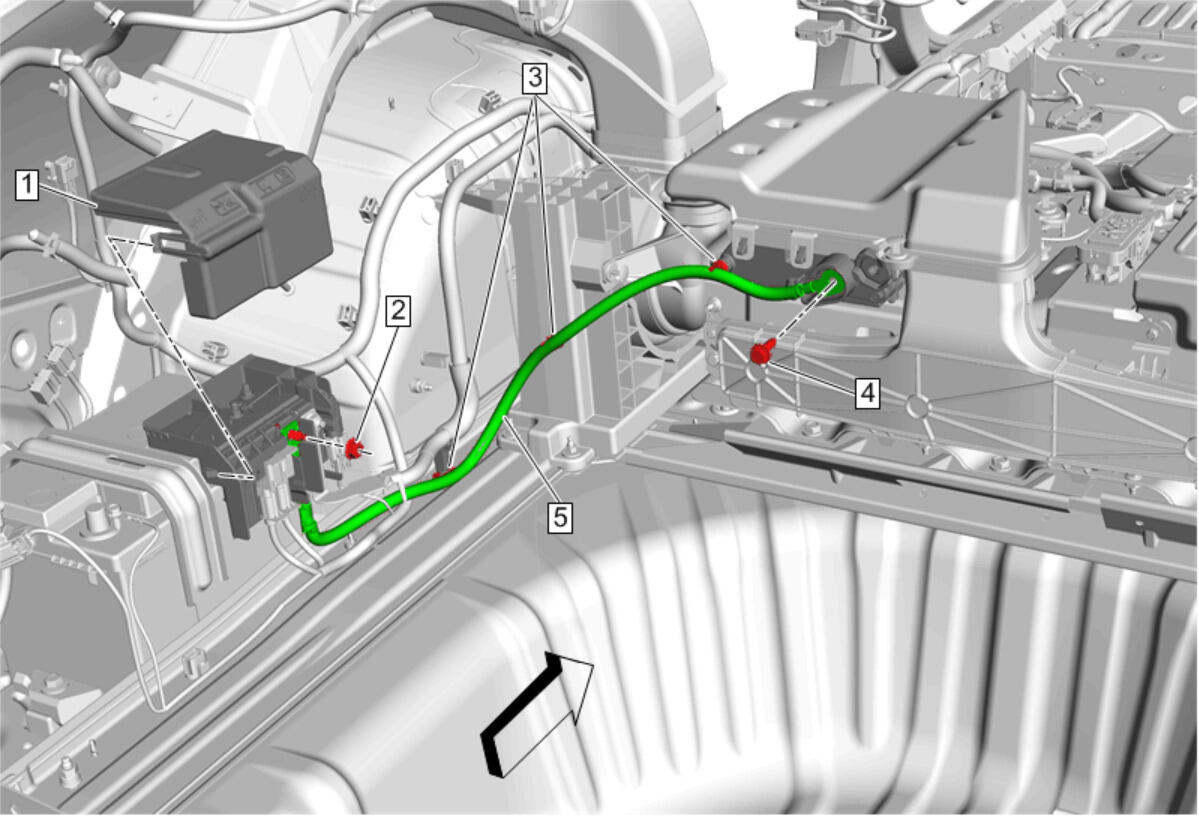

Fig 1: Battery Positive Junction Block Cable

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Rear Compartment Side Trim Replacement - Left Side (With HP4) Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection (without KL9)Battery Negative Cable Disconnection and Connection (with KL9)
1	Battery Distribution Fuse Block Cover
2	Battery Positive Cable Nut CAUTION: Refer to Fastener Caution Tighten 16 N.m (12 lb ft)
3	Retainer [3x]
4	Battery Positive Cable Bolt Tighten 12 N.m (106 lb in)
5	Battery Positive Junction Block Cable
