Installation Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Battery Negative Cable (1)» Install

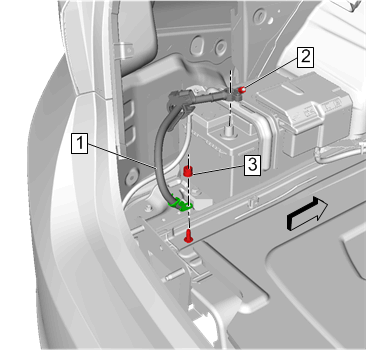

    Fig 1: Battery Negative Post Clamp Nut
    GM4315963Courtesy of GENERAL MOTORS COMPANY
  2. Battery Negative Cable Ground Fastener (3)» Install and tighten 9 N.m (80 lb in)
    CAUTION: Refer to Fastener Caution
  3. Battery Negative Post Clamp Nut (2)» Tighten 4.5 N.m (40 lb in)
  4. Electrical Connector (1)» Connect

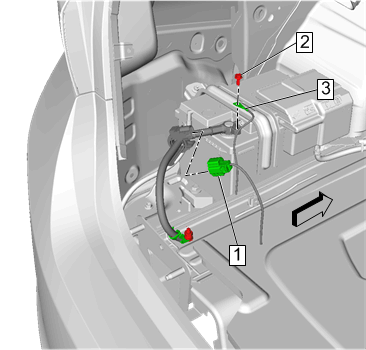

    Fig 2: Electrical Connector
    GM4315962Courtesy of GENERAL MOTORS COMPANY
  5. Body Harness Terminal (3)» Install
  6. Body Harness Ground Fastener (2)» Install and tighten 9 N.m (80 lb in)
  7. Rear Compartment Side Trim Panel (2)» Install - Rear Compartment Side Trim Replacement - Left Side (With HP4)
    Fig 3: Rear Compartment Side Trim - Left Side (With HP4)
    GM4331788Courtesy of GENERAL MOTORS COMPANY
