Auxiliary Battery Negative Cable Replacement (HP4)
WARNING: This page is about a different variant/trim than selected.

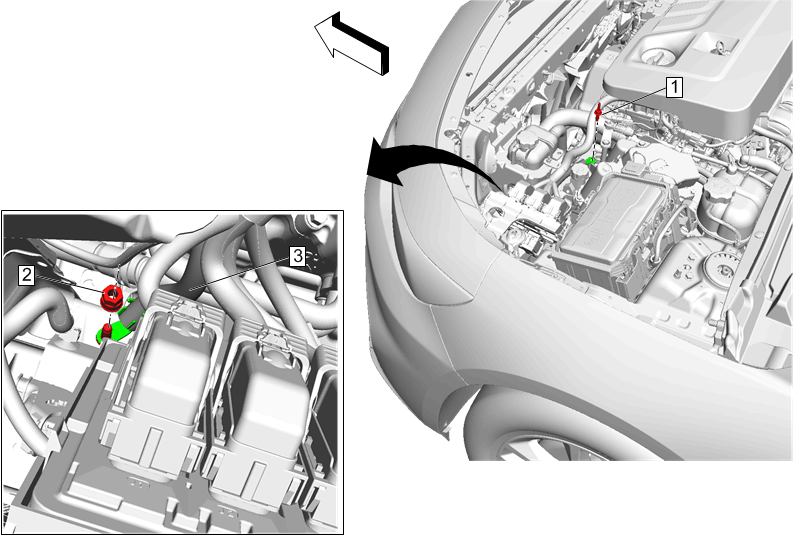

| Callout | Component Name |
|---|---|
| 1 | Auxiliary Battery Negative Cable Fastener
CAUTION:
Refer to Fastener Caution Tighten 22 N.m (16 lb ft) |
| 2 | Auxiliary Battery Negative Cable Fastener Tighten 9 N.m (80 lb in) |
| 3 | Auxiliary Battery Negative Cable |
