Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Transmission - Remove Transmission Replacement
  2. Install the EN-652  holder (2), lock the automatic transmission flex plate via the starter ring gear.

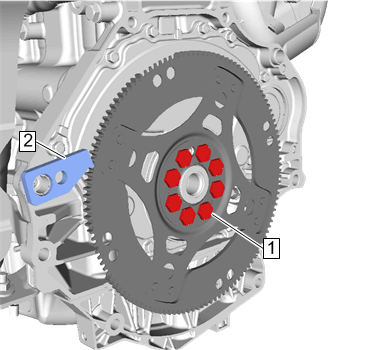

    Fig 1: Automatic Transmission Flex Plate Bolt
    GM4317933Courtesy of GENERAL MOTORS COMPANY
  3. Automatic Transmission Flex Plate Bolt (1) - Loosen [8x]
  4. Remove the EN-652  holder (2).
  5. Automatic Transmission Flex Plate Bolt (1) - Remove and DISCARD [8x]

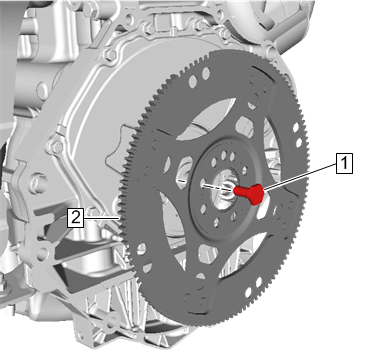

    Fig 2: Automatic Transmission Flex Plate Bolt
    GM4317938Courtesy of GENERAL MOTORS COMPANY
  6. Automatic Transmission Flex Plate (2) - Remove
