Manifold Absolute Pressure Sensor Replacement
WARNING: This page is about a different variant/trim than selected.

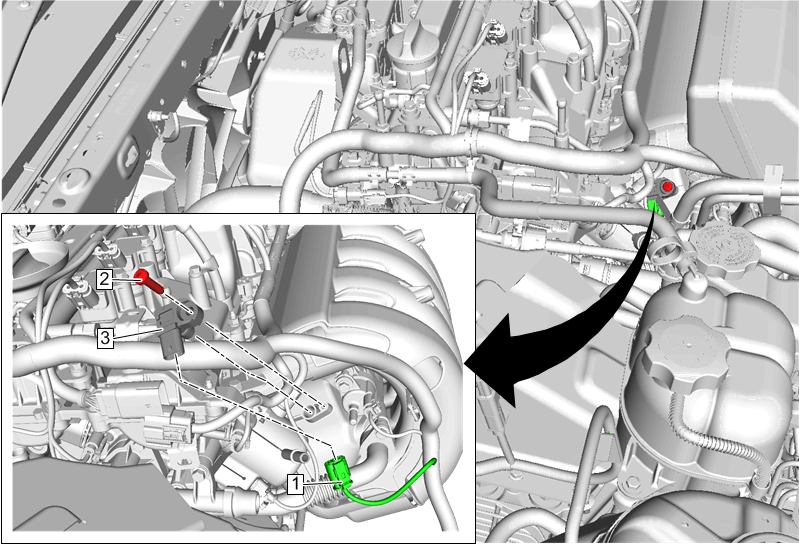

| Callout | Component Name |
|---|---|
| Preliminary Procedure Intake Manifold Cover Replacement |
|
| 1 | Electrical Connector |
| 2 | Manifold Absolute Pressure Sensor Bolt
CAUTION:
Refer to Fastener Caution
. Tighten 5 N.m (44 lb in) |
| 3 | Manifold Absolute Pressure Sensor Procedure Inspect the O-ring and replace if necessary. |
