Intake Air Duct Replacement

WARNING: This page is about a different variant/trim than selected.

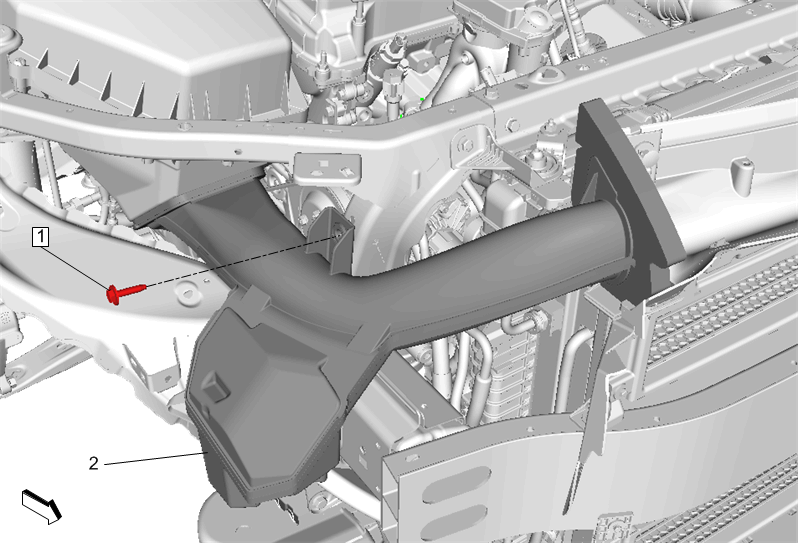

Fig 1: Intake Air Duct

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Front Intake Air Duct Replacement Headlamp Replacement
1	Intake Air Duct Bolt CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Intake Air Duct

Callout

Component Name

Preliminary Procedures

Intake Air Duct Bolt

CAUTION: Refer to Fastener Caution .

Tighten
9 N.m (80 lb in)

Intake Air Duct
