Headlamp Replacement

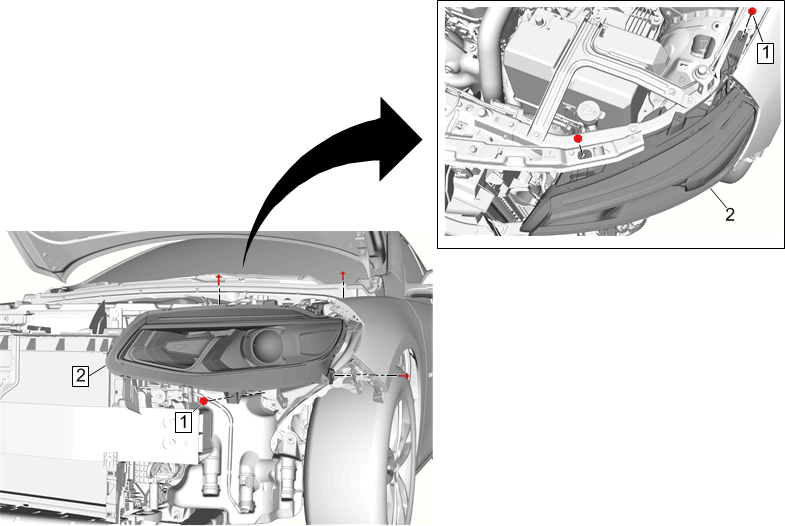

Fig 1: Headlamp

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Halogen Bulb Warning . Preliminary Procedures Front Bumper Fascia Center Support Replacement Front Bumper Fascia Replacement
1	Headlamp Bolt [4x] CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Headlamp Procedure Disconnect the electrical connector. Headlamp Aiming

Callout

Component Name

WARNING: Refer to Halogen Bulb Warning .

Preliminary Procedures

Headlamp Bolt [4x]

CAUTION: Refer to Fastener Caution .

Tighten
2.5 N.m (22 lb in)

Headlamp

Procedure
