Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Intake Manifold Cover - Remove Intake Manifold Cover Replacement
  2. Battery Negative Cable - Disconnect Battery Negative Cable Disconnection and Connection (HP4)
  3. Ignition Coil Electrical Connector (1) - Disconnect [4x]

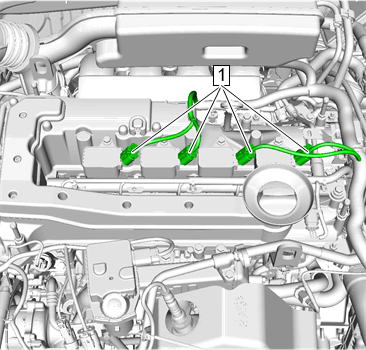

    Fig 1: Ignition Coil Electrical Connector
    GM4339744Courtesy of GENERAL MOTORS COMPANY
    NOTE: Mark the ignition coil electrical connectors for proper installation.
  4. Ignition Coil Bolt (1) - Remove [4x]

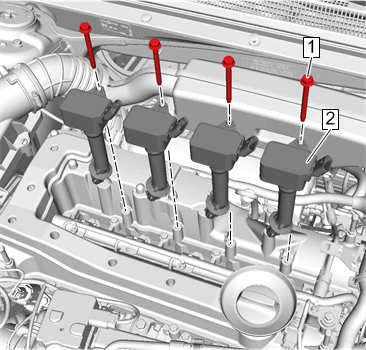

    Fig 2: Ignition Coil Bolt
    GM4339753Courtesy of GENERAL MOTORS COMPANY
  5. Ignition Coil (2) - Remove [4x]
