Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Fuel Tank Filler Pipe Housing - Remove Fuel Tank Filler Pipe Housing Replacement
    WARNING: Refer to Gasoline/Gasoline Vapors Warning .
    WARNING: Refer to Safety Glasses Warning .
  2. Evaporative Emission Canister Air Inlet Hose @ Evaporative Emission System Vacuum Leak Pump - Disconnect Plastic Collar Quick Connect Fitting Service
  3. Fuel Tank Filler Pipe Bolt (1) - Remove

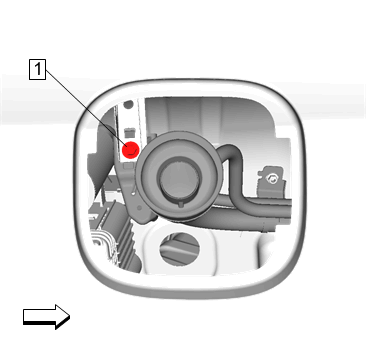

    Fig 1: Fuel Tank Filler Pipe Bolt
    GM4328128Courtesy of GENERAL MOTORS COMPANY
  4. Fuel Tank Filler Pipe Nut (1) - Remove

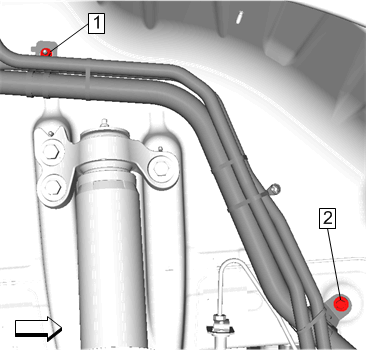

    Fig 2: Fuel Tank Filler Pipe Nut
    GM4424840Courtesy of GENERAL MOTORS COMPANY
  5. Fuel Tank Filler Pipe Bolt (2) - Remove
  6. Evaporative Emission Canister Air Inlet Hose (1) - Disconnect Plastic Collar Quick Connect Fitting Service

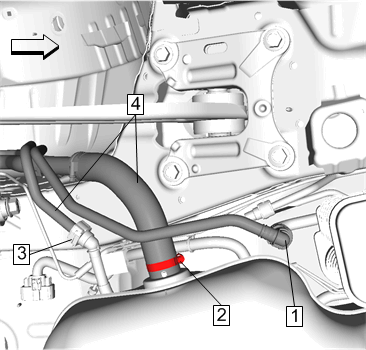

    Fig 3: Evaporative Emission Canister Air Inlet Hose
    GM4328135Courtesy of GENERAL MOTORS COMPANY
  7. Fuel Tank Filler Pipe Clamp (2) - Remove
  8. Fuel Tank Vent Pipe (3) - Disconnect Plastic Collar Quick Connect Fitting Service
  9. Fuel Tank Filler Pipe (4) - Remove
