Fuel Tank Filler Pipe Housing Replacement

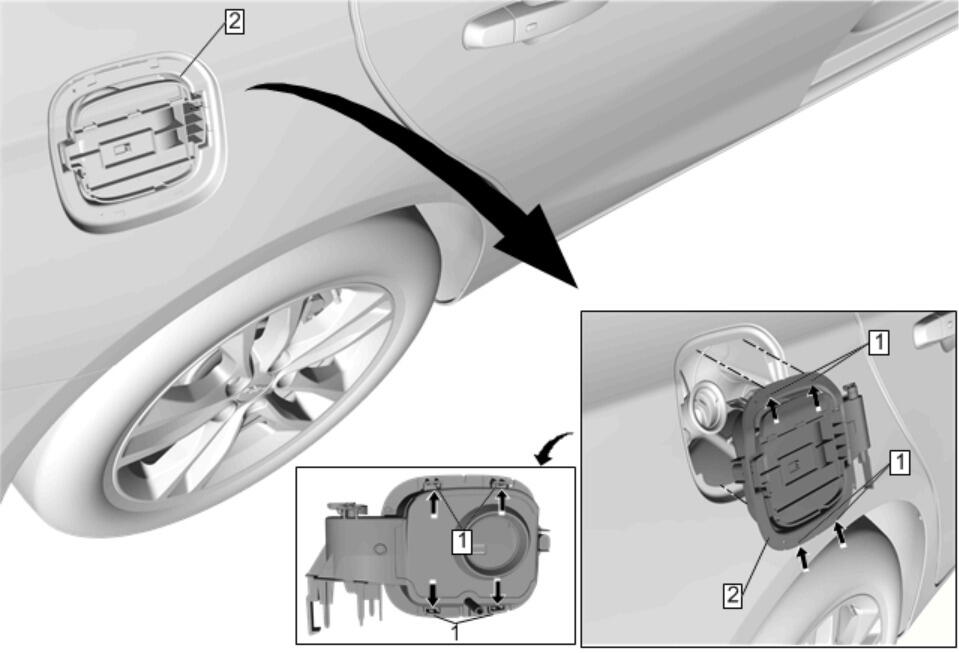

Fig 1: Fuel Tank Filler Pipe Housing
GM4245015Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedures
Rear Wheelhouse Liner Replacement
1 Fuel Tank Filler Pipe Housing Retainer [4x]
Procedure
Using a flat-bladed tool, release the fuel tank filler pipe housing retainers through the wheelhouse opening.
2 Fuel Tank Filler Pipe Housing

Procedure

  1. Ensure the fuel filler door locking rod is in the lock position while removing the housing.
  2. Press outward from the pipe to remove from the quarter panel.
  3. Transfer components as necessary.
