Fuel Injection Fuel Rail Fuel Pressure Sensor Replacement

WARNING: This page is about a different variant/trim than selected.

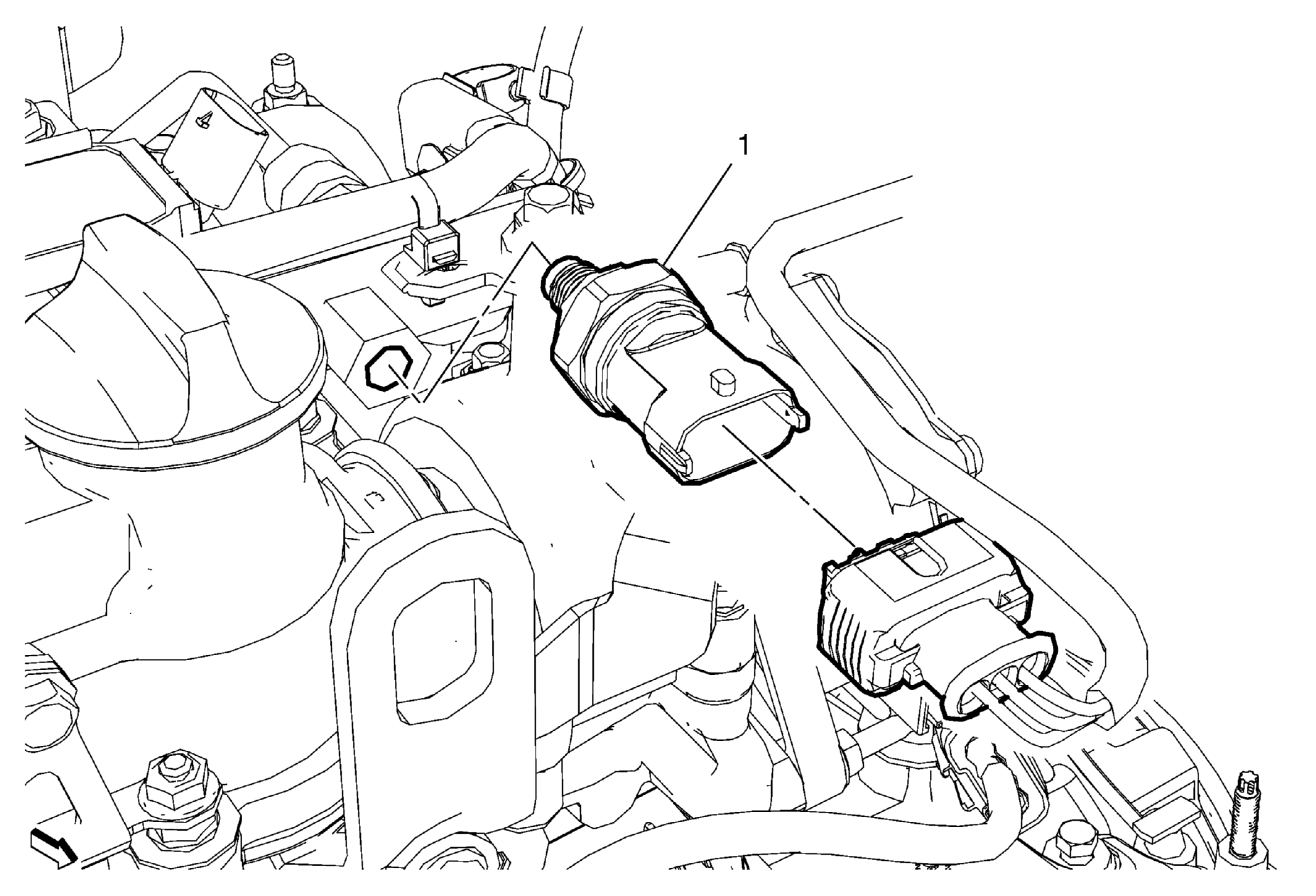

Fig 1: Fuel Injection Fuel Rail Fuel Pressure Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Intake Manifold Cover Replacement Fuel Pressure Relief
1	Fuel Injection Fuel Rail Fuel Pressure Sensor WARNING: Always wear safety goggles when working with fuel in order to protect the eyes from fuel splash. WARNING: Fuel escapes - observe safety measures and national legislation. Failure to comply could result in personal injury. CAUTION: Refer to Component Fastener Tightening Caution . Procedure Disconnect the electrical connector. After installing the sensor, start the engine then inspect for fuel system leaks. Tighten 30 N.m (22 lb ft)

Callout

Component Name

Preliminary Procedures

Fuel Injection Fuel Rail Fuel Pressure Sensor

WARNING: Always wear safety goggles when working with fuel in order to protect the eyes from fuel splash.

WARNING: Fuel escapes - observe safety measures and national legislation. Failure to comply could result in personal injury.

CAUTION: Refer to Component Fastener Tightening Caution .

Procedure

Disconnect the electrical connector.
After installing the sensor, start the engine then inspect for fuel system leaks.
Tighten

30 N.m (22 lb ft)
