Fuel Injection Fuel Feed Front Pipe Replacement

WARNING: This page is about a different variant/trim than selected.

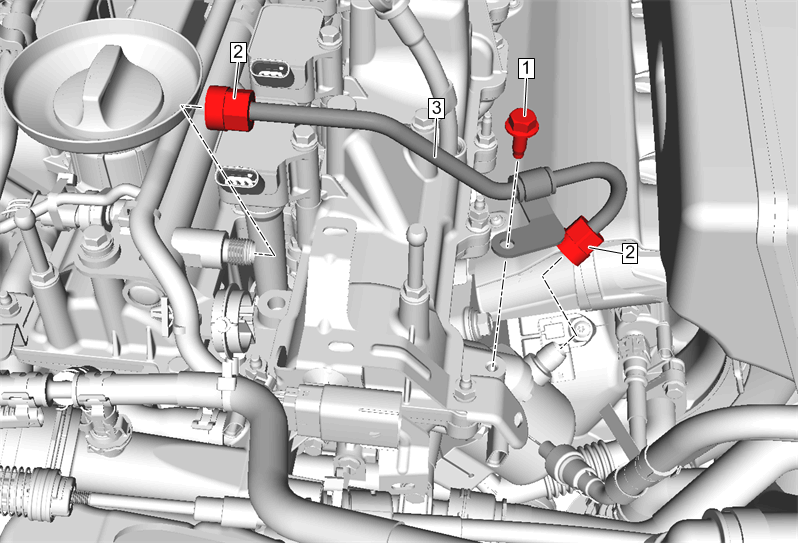

Fig 1: Fuel Injection Fuel Feed Front Pipe

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Intake Manifold Cover Replacement Fuel Pressure Relief
1	Fuel Injection Fuel Feed Pipe Bolt CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Fuel Injection Fuel Feed Front Pipe Nut [2x] CAUTION: Refer to Component Fastener Tightening Caution . Tighten 30 N.m (22 lb ft)
3	Fuel Injection Fuel Feed Front Pipe NOTE: The threaded fuel pipes are one time use, always install a NEW fuel injection fuel feed front pipe. Procedure Ensure that the fuel injection fuel feed front pipe and fittings are clean and dry prior to assembly. Pressurize the fuel system and check for leaks.
