Installation Procedure

WARNING: This page is about a different variant/trim than selected.

Exhaust Gas Recirculation Valve Inlet Gasket (2) - Install

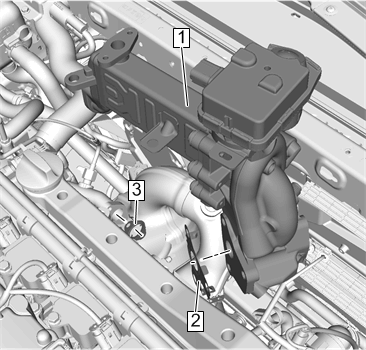

Fig 1: Exhaust Gas Recirculation Cooler
Courtesy of GENERAL MOTORS COMPANY
Exhaust Gas Recirculation Pipe Gasket (3) - Install
Exhaust Gas Recirculation Cooler (1) - Install
Exhaust Gas Recirculation Valve Inlet Bolt (1) - Install and tighten [3x] 25 N.m (18 lb ft)

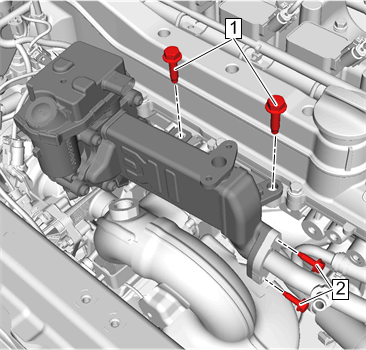

Fig 2: Exhaust Gas Recirculation Valve Inlet Bolt
Courtesy of GENERAL MOTORS COMPANY

CAUTION: Refer to Fastener Caution .
Exhaust Gas Recirculation Pipe Bolt (2) - Install and tighten [2x] 10 N.m (89 lb in)

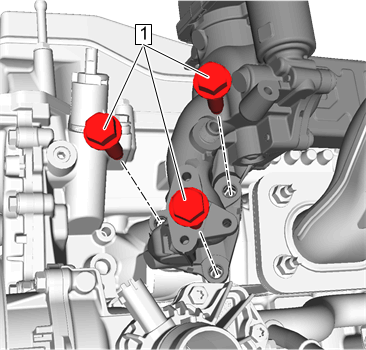

Fig 3: Exhaust Gas Recirculation Cooler Bolt
Courtesy of GENERAL MOTORS COMPANY
Exhaust Gas Recirculation Cooler Bolt (1) - Install and tighten [2x] 25 N.m (18 lb ft)
Retainer (2) - Install

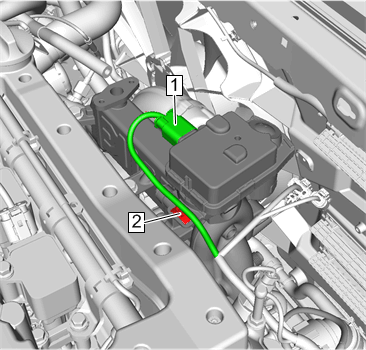

Fig 4: Electrical Connector
Courtesy of GENERAL MOTORS COMPANY
Electrical Connector (1) - Connect
Exhaust Gas Recirculation Cooler Inlet Pipe - Install Exhaust Gas Recirculation Cooler Inlet Pipe Replacement
Exhaust Gas Recirculation Cooler Outlet Pipe - To Fuel Heater Return Hose - Install Exhaust Gas Recirculation Cooler Outlet Pipe Replacement (To Fuel Heater Return Hose) Exhaust Gas Recirculation Cooler Outlet Pipe Replacement (To Intake Manifold)
Catalytic Converter Heat Shield - Install Catalytic Converter Heat Shield Replacement (LKN)

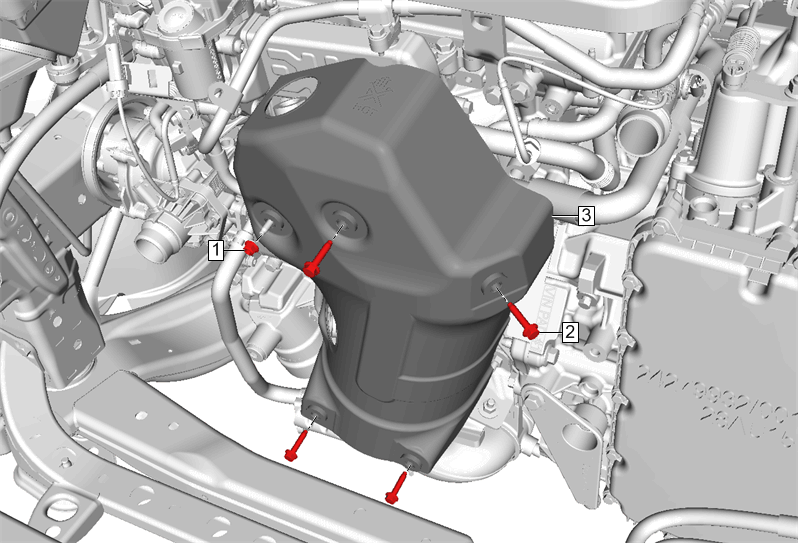

Fig 5: Catalytic Converter Heat Shield Nut
Courtesy of GENERAL MOTORS COMPANY
Exhaust Gas Recirculation Cooler Temperature Sensor Bracket - Install Exhaust Gas Recirculation Cooler Temperature Sensor Bracket Replacement
Exhaust Gas Recirculation Cooler Temperature Sensor - Position 1 - Install Exhaust Gas Recirculation Cooler Temperature Sensor Replacement - Position 1

Fig 6: Exhaust Gas Recirculation Cooler Temperature Sensor - Position 1
Courtesy of GENERAL MOTORS COMPANY
Intake Manifold Cover - Install Intake Manifold Cover Replacement
