Removal Procedure

WARNING: This page is about a different variant/trim than selected.

Water Outlet - Remove Water Outlet Replacement (LKN)
Exhaust Gas Recirculation Cooler Temperature Sensor - Position 2 - Remove Exhaust Gas Recirculation Cooler Temperature Sensor Replacement - Position 2
Air Cleaner Outlet Duct - Remove Air Cleaner Outlet Duct Replacement

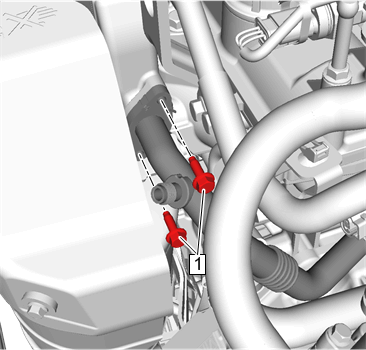

Exhaust Gas Recirculation Cooler Outlet Pipe Bolt (1) - Remove [2x]

Fig 1: Exhaust Gas Recirculation Cooler Outlet Pipe Bolt
Courtesy of GENERAL MOTORS COMPANY

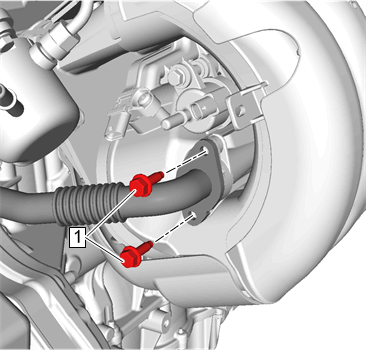

Exhaust Gas Recirculation Pipe Bolt (1) - Remove

Fig 2: Exhaust Gas Recirculation Pipe Bolt
Courtesy of GENERAL MOTORS COMPANY

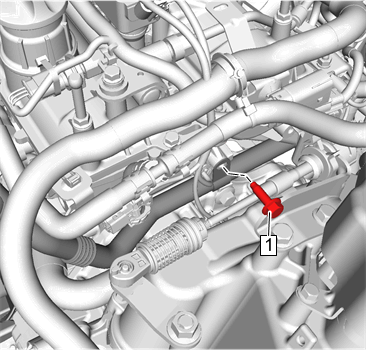

Exhaust Gas Recirculation Cooler Outlet Pipe Bolt (1) - Remove [2x]

Fig 3: Exhaust Gas Recirculation Cooler Outlet Pipe Bolt
Courtesy of GENERAL MOTORS COMPANY
Exhaust Gas Recirculation Cooler Outlet Pipe Gasket (1) - Remove

Fig 4: Exhaust Gas Recirculation Cooler Outlet Pipe Gasket
Courtesy of GENERAL MOTORS COMPANY

NOTE: The gasket is reusable, inspect the gasket and replace if damaged.
