Exhaust Gas Recirculation Cooler Temperature Sensor Replacement - Position 2

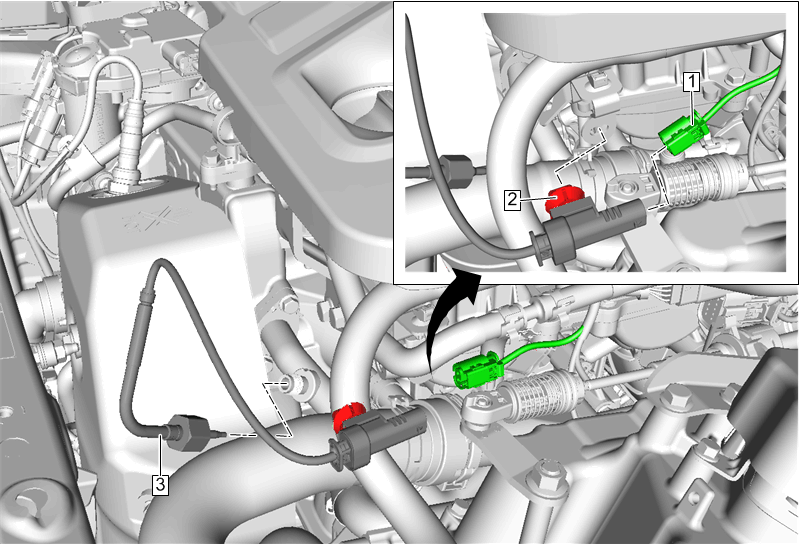

Fig 1: Exhaust Gas Recirculation Cooler Temperature Sensor - Position 2

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Electrical Connector
2	Retainer
3	Exhaust Gas Recirculation Cooler Temperature Sensor CAUTION: The exhaust temperature sensor and exhaust pressure differential sensor line fittings may be difficult to remove when the engine exhaust system temperature is below 48°C (120°F). Excessive force may damage the threads in the exhaust manifold or exhaust pipe. CAUTION: Refer to Component Fastener Tightening Caution . Tighten  45 N.m (33 lb ft)
