Evaporative Emission Canister Purge Solenoid Valve Replacement

WARNING: This page is about a different variant/trim than selected.

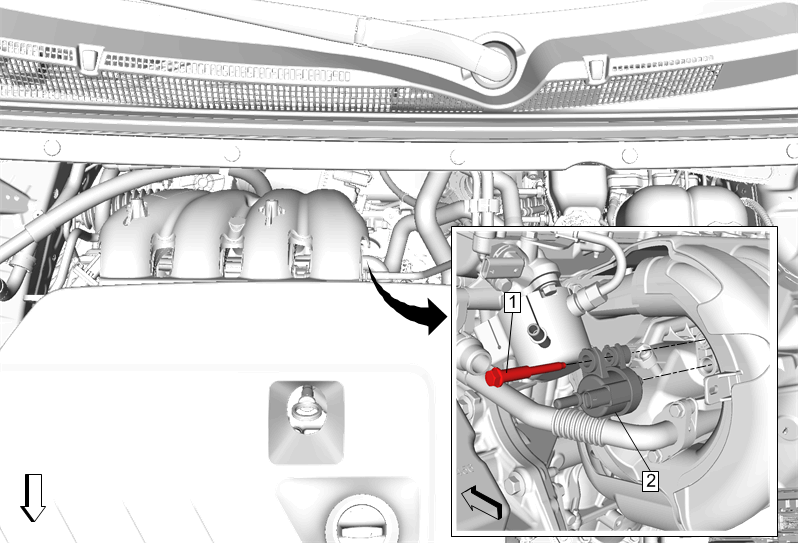

Fig 1: Evaporative Emission Canister Purge Solenoid Valve

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Gasoline/Gasoline Vapors Warning . WARNING: Refer to Safety Glasses Warning . Preliminary Procedures Evaporative Emission Front Pipe @ Evaporative Emission Canister Purge Solenoid Valve - Disconnect Evaporative Emission Front Pipe Replacement Disconnect the electrical connector.
1	Evaporative Emission Canister Purge Solenoid Valve Bolt CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Evaporative Emission Canister Purge Solenoid Valve

Callout

Component Name

WARNING: Refer to Gasoline/Gasoline Vapors Warning .

WARNING: Refer to Safety Glasses Warning .

Preliminary Procedures

Evaporative Emission Front Pipe @ Evaporative Emission Canister Purge Solenoid Valve - Disconnect Evaporative Emission Front Pipe Replacement
Disconnect the electrical connector.

Evaporative Emission Canister Purge Solenoid Valve Bolt

CAUTION: Refer to Fastener Caution .

Tighten
9 N.m (80 lb in)

Evaporative Emission Canister Purge Solenoid Valve
